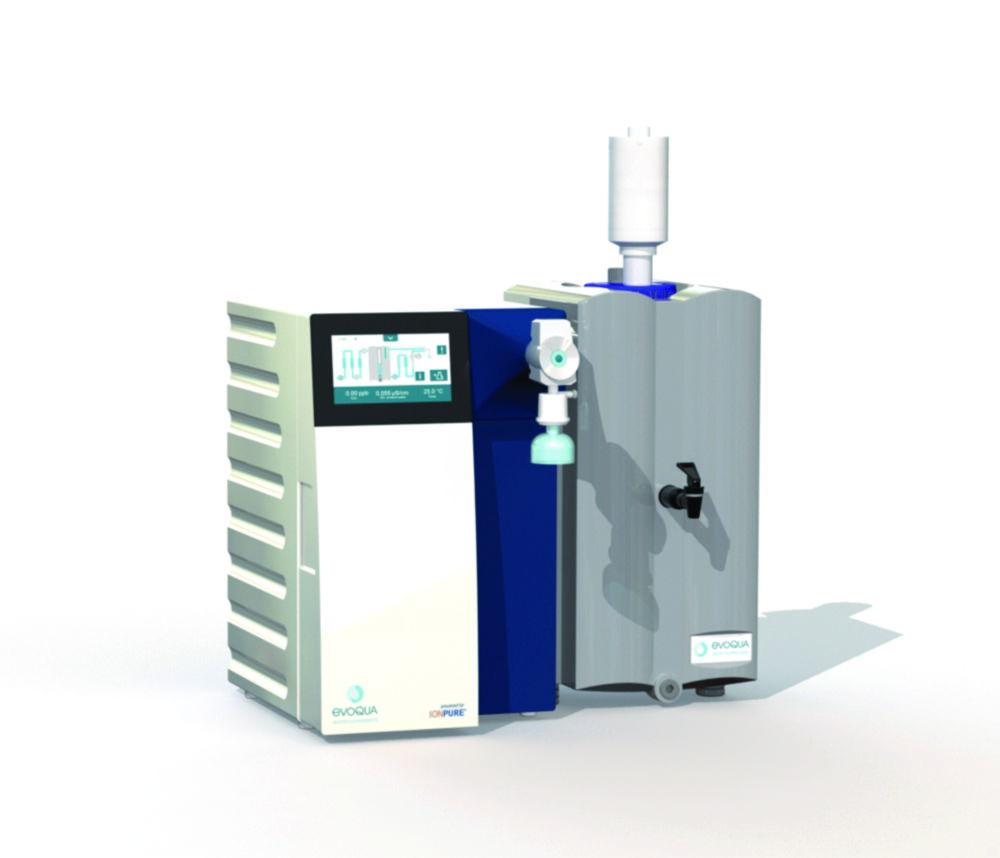

Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM

The Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM is an advanced ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates multiple purification technologies, including reverse osmosis (RO), continuous electrodeionization (CEDI), ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring, ensuring consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. The continuous electrodeionization stage purifies RO product water to a conductivity of 0.055 µS/cm (18.2 MΩ·cm), with product water drawn directly from the integrated storage tank. The system features user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

Key Features:

• Brand: Evoqua
• Model: Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM
• Part Number: W3T276080
• Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
• TOC Level: < 3 ppb
• Endotoxin Content: < 0.001 EU/ml
• Flow Rate: Up to 2 L/min for ultrapure water
• Storage Tank: 30 L capacity for Type II water
• Recovery Rate: > 30% via built-in reverse osmosis
• Display: 7" multi-color touch screen for intuitive operation
• Connectivity: USB, SD card, printer, and Modbus interface
• Energy Saving: Includes energy saving mode
• Disinfection: User-guided disinfection mode
• Installation: Wall mounting possible for space-saving setup
• Dimensions (W x D x H): 340 x 550 x 535 mm (system), 300 x 310 x 770 mm (tank)
• Weight: 33 kg
• Power Supply: 100–240 V, 50/60 Hz

Scope of Supply:

• Ultrapure water system
• 1 set of modules and filters

Designed to deliver reliable, ultrapure water suitable for demanding laboratory applications such as molecular biology, analytical chemistry, and microbiology, the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM ensures efficient and consistent performance with user-friendly operation.

Frequently Asked Questions

1. What is the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM used for?

It is an advanced ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates multiple purification technologies, including reverse osmosis (RO), continuous electrodeionization (CEDI), ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring, ensuring consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. The continuous electrodeionization stage purifies RO product water to a conductivity of 0.055 µS/cm (18.2 MΩ·cm), with product water drawn directly from the integrated storage tank. The system features user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

2. Is the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM suitable for laboratories requiring both Type I and Type II water directly from tap water sources?

Yes. It is designed for laboratories requiring both Type I and Type II water directly from tap water sources, and offers a TOC level of < 3 ppb and an endotoxin content of < 0.001 EU/ml to support this kind of work.

3. What TOC level and endotoxin content does the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM have?

It has a TOC level of < 3 ppb, an endotoxin content of < 0.001 EU/ml and a flow rate of up to 2 L/min for ultrapure water, and is supplied under manufacturer part number W3T276080.

4. What water quality and connectivity does the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM offer?

It offers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm), USB, SD card, printer, and Modbus interface, energy saving mode and user-guided disinfection mode.

5. How does the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM compare with the Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF?

For optical imaging applications, the Evoqua Ultra Clear™ TP ED 20 TWF EDI 30 UV UF TM is differentiated by water quality Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm) and toc level < 3 ppb. The Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF from Stakpure is a broader alternative in the same application area rather than a direct equivalent. Compare the required specifications, compatibility and workflow requirements before selection.
