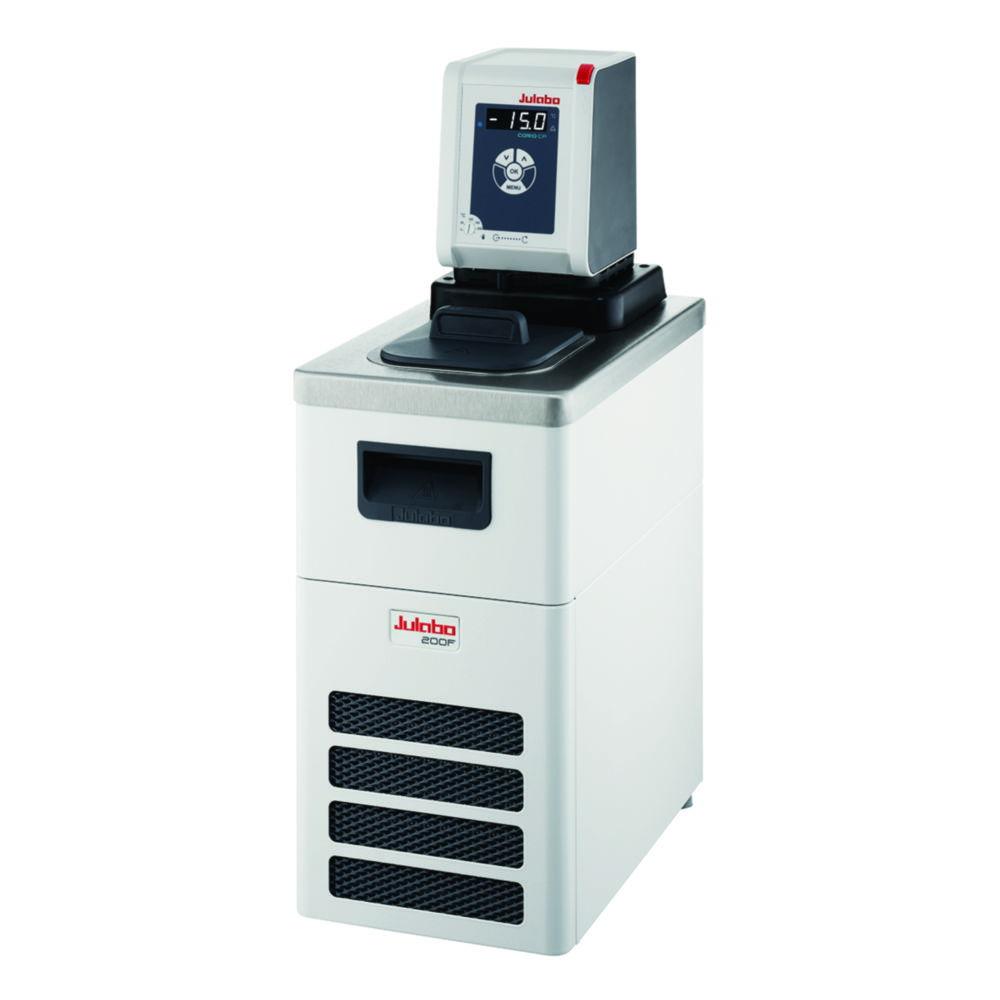

Julabo Refrigerated/Heating Circulator CORIO CP-200F
Representative image only

Julabo Refrigerated/Heating Circulator CORIO CP-200F

Sold by: Scientific Resources
Available Soon
Part #: 4.670 680Manufacturer #: 9013701
Estimated shipping time:Contact us via live chat or via contact us page

SG $11,388.30

See the available (1) variant product
Product overview

The Julabo Refrigerated/Heating Circulator CORIO CP-200F is designed to provide precise temperature control for laboratory applications requiring both heating and cooling. Featuring an advanced microprocessor for accurate performance, this circulator is ideal for tasks such as temperature calibration, material testing, and chemical reactions. With reliable operation and a compact design, the CORIO CP-200F offers outstanding performance and flexibility.

Key Features:

  • Brand: Julabo
  • Temperature Range: -20°C to 200°C for a wide range of applications
  • Microprocessor Control: Precise temperature regulation for accuracy
  • Application: Ideal for laboratory heating, cooling, and temperature calibration
  • Compact Design: Space-efficient for laboratory settings
  • Display: Bright, white, easy-to-read display
  • Pump: Easy switching between internal and external circulation with infinitely adjustable pressure pump
  • Connections: External pump connections (M16x1)
  • Features: Timer adjustable up to 999 minutes, space-saving cooling coil design, stainless steel bath tank with lid and drain tap
  • Safety: Unique early warning system for low liquid level, removable ventilation grid, refrigeration unit without lateral ventilation openings
  • Compliance: Class III (FL) according to DIN 12876-1

Scope of Supply:

  • Refrigerated circulator
  • Mains power cable
  • Connection box
  • Bath cover
  • Connecting cable
  • Refrigerator
  • Hose olives 8 and 12 mm

The Julabo CORIO CP-200F is an essential tool for laboratories that require both heating and cooling with precise temperature control.

Product Specifications
  • HS Code #84198998
  • Bath depth150 mm
  • Cooling capacity at 20 °C0,2 kW
  • Depth opening150 mm
  • Opening (WxD)130 x 150 mm
  • Ext. dim. (WxDxH)230 x 390 x 650 mm
  • Ext. depth390 mm
  • Ext. height650 mm
  • Ext. width230 mm
  • Power supply frequency50 Hz
  • Heating capacity2 kW
  • IP codeIP 21
  • Material bathStainless steel
  • Max. delivery pressure0.7 bar
  • Max. temperature200 °C
  • Max. voltage230 V
  • Max. volume bath4 l
  • Min. temperature-20 °C
  • Min. volume bath3 l
  • Plug typeEU
  • Power supply230 V, 50 Hz
  • RefrigerantR134a
  • Temperature stability±0,03 °C
  • Temperature-20 ... 200 °C
  • TypeCP-200F
  • Type of auxiliary energyMains connection
  • Volume bath3 ... 4 l
  • Weight26 kg
  • Width opening130 mm
  • With lidYes
  • With timerYes
