Representative image only

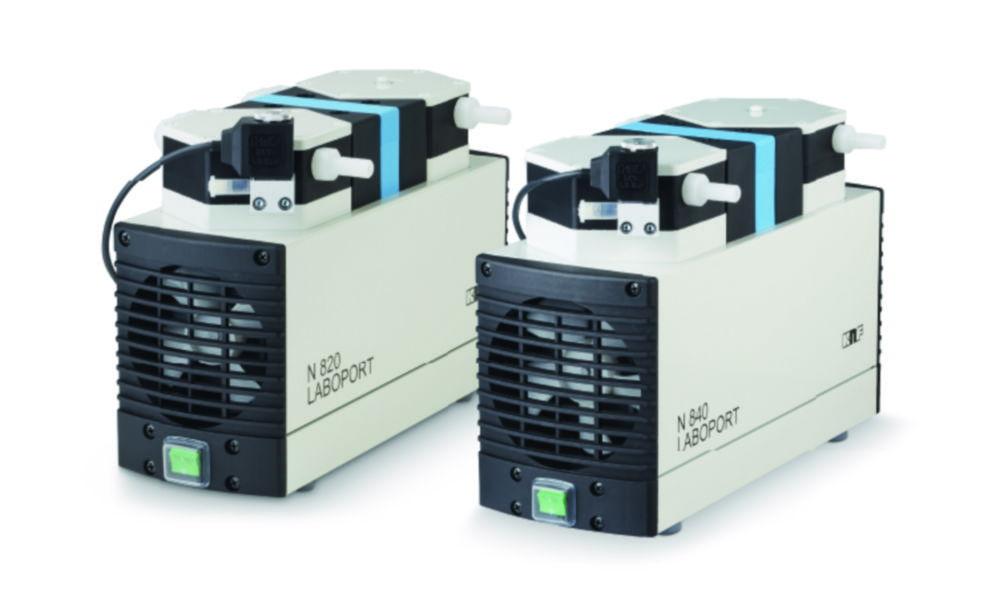

LABOPORT® Vacuum pump N 820.3 FT 40.18 20l/10m bar
Sold by: Scientific Resources
Available Soon
Part #: 9.880 615Manufacturer #: 312295/026366
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
- Application: Rotary evaporation, Distillation, Vacuum oven, Centrifugal concentration
- Integrated KNF self-drying system ensures that condensate is quickly removed from the pump heads without the vacuum being altered. This significantly reduces process time and preserves the pump heads.
- Chemically resistant and thus ideal for use with extremely aggressive/corrosive gases and vapors
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 10 mm
- Depth312 mm
- Dimensions (WxDxH)177 x 312 x 220 mm
- Flow rate20 l/min
- Power supply frequency50 Hz
- Height220 mm
- Material media contactPTFE/PTFE-coated/FFPM
- Max. overpressure1 bar
- Max. permitted ambient temp.40 °C
- Max. voltage230 V
- Min. permitted ambient temperature5 °C
- Power supply230 V, 50 Hz
- TypeN 820.3 FT.40.18
- Type of auxiliary energyMains connection
- Ultimate vacuum10 mbar
- UNSPSC40151502
- Weight9.6 kg
- Width177 mm
Downloads
- Data Sheet for Laboport Self Drying Vacuum PumpDownload
