Representative image only

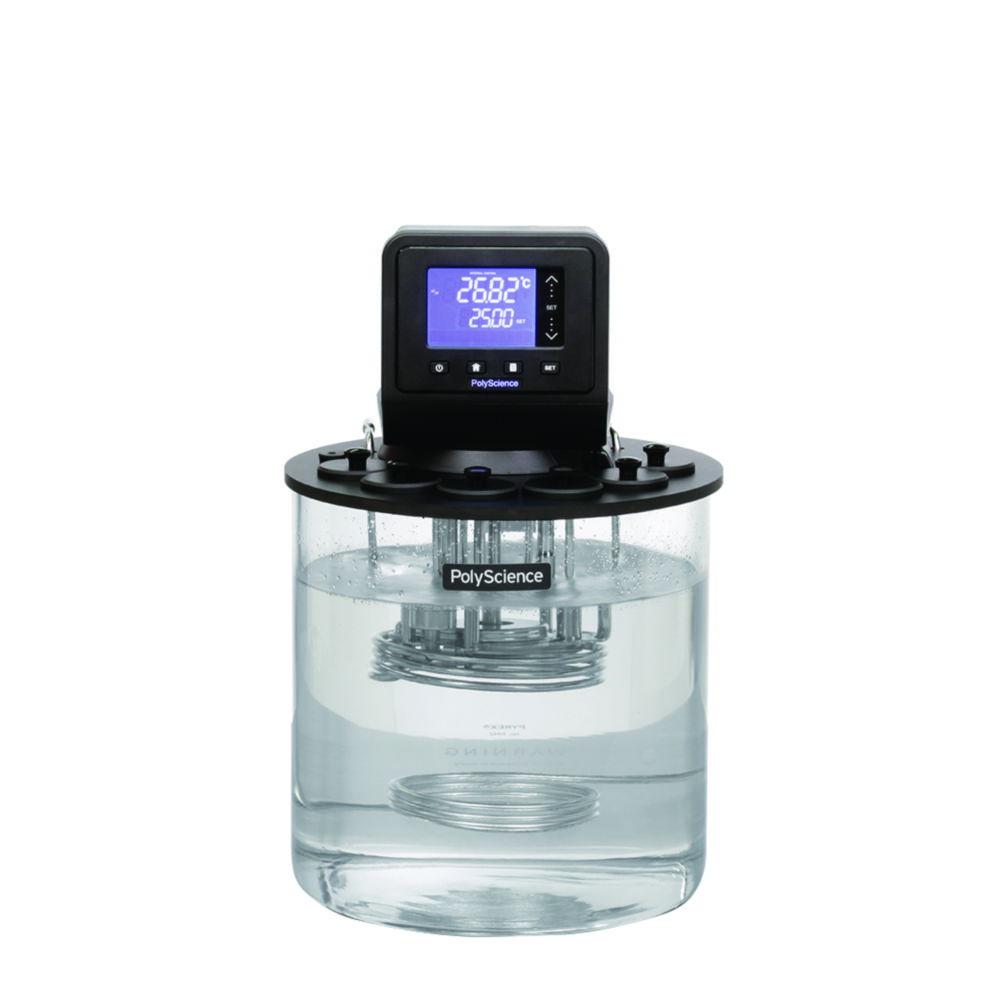

Viscosity bath 17L ambient +10°...+135°C, 240V, 50Hz Advanced Digital Temperature Controller
Sold by: Scientific Resources
Available Soon
Part #: 6.313 370Manufacturer #: AD17VB6G-A12E
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Viscosity baths are suitable for precise temperature control tasks and have been specially designed for viscosity tests with all common capillary viscometers including ASTM D0445. 6 viscosimeter openings (Ø 51 mm) are located in the insulating and chemical-resistant DuraTop™ bath top. The devices are additionally equipped with a tap water cooling coil and an over-temperature protection.
- Round glass tank
- Advanced digital temperature controller
- 4 languages: english, french, spanish, german
- Swivel 180™ rotating controller
- Connectivity: Ethernet, USB A and B, RS232/ adressable RS485
- Variable speed pump with external circulation in open and closed loop
- Automatic performance optimization
- Single-point calibration capability
Product Specifications
- HS Code #84198998
- Bath depth279 mm
- Dimensions (WxH)318 x 521 mm
- Ext. Ø318 mm
- Ext. height521 mm
- Power supply frequency50 Hz
- Heating capacity2200 W
- Max. delivery pressure0.25 bar
- Max. temperature200 °C
- Max. voltage240 V·AC
- Max. volume bath17 l
- Min. temperature+10 °C
- Power supply240 V·AC, 50 Hz
- Temperature stability±0,01 °C
- TemperatureRT
- TemperatureRT+10 ... 200 °C
- TypeAD17
- Type of auxiliary energyMains connection
- Type of displayLCD
- Volume bath17 l
- Weight34 kg
