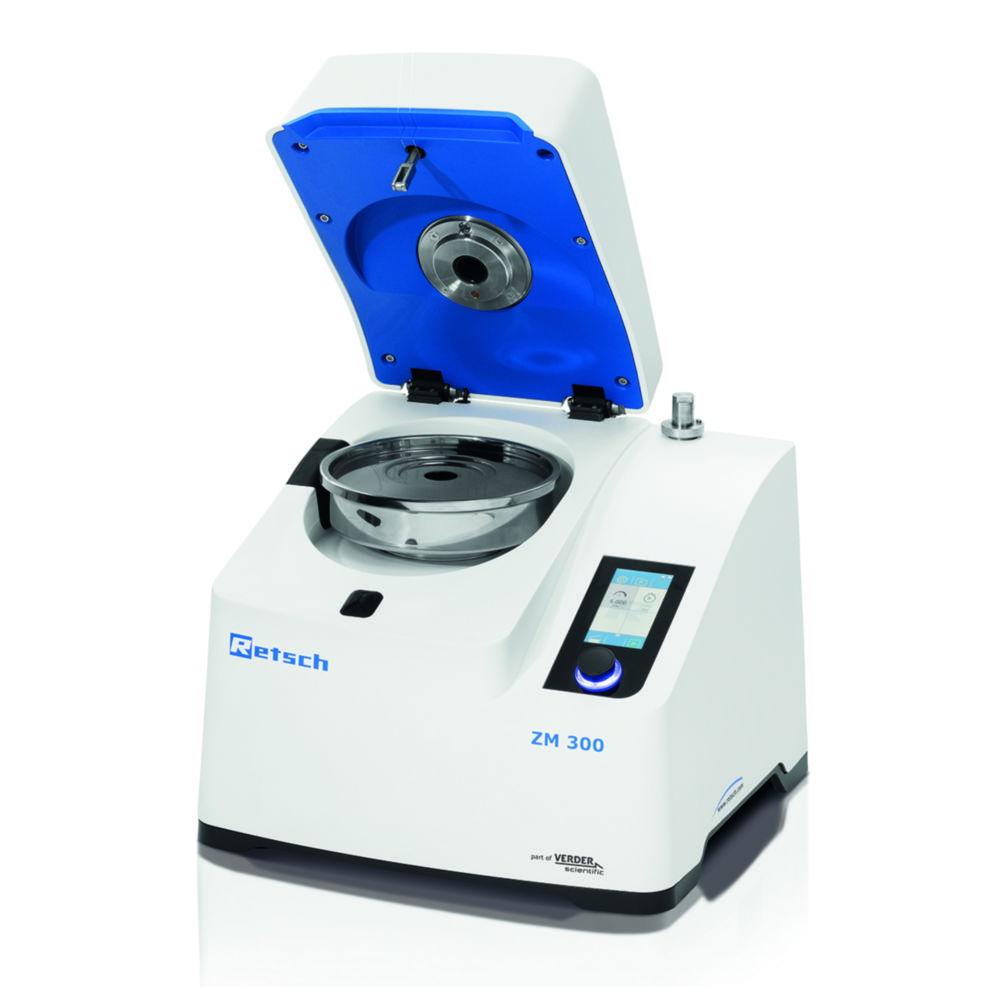

Retsch Ultra Centrifugal Mill ZM 300 200-240 V, 50/60 Hz
Representative image only

Retsch Ultra Centrifugal Mill ZM 300 200-240 V, 50/60 Hz

Sold by: Scientific Resources
Available Soon
Part #: 4.685 120Manufacturer #: 20.824.0002
Estimated shipping time:Contact us via live chat or via contact us page

SG $18,909.10

See the available (1) variant product
Product overview

The Retsch Ultra Centrifugal Mill ZM 300 is a high-speed rotor mill designed for rapid size reduction of soft to medium-hard, fibrous, and temperature-sensitive materials. It is ideal for applications in food, pharmaceuticals, agriculture, and materials science. With its advanced Push-Fit system and patented cassette design, all accessory components can be exchanged quickly and tool-free, streamlining workflow and minimizing downtime.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 200–240 V, 50/60 Hz
  • Grinding Mechanism: High-speed impact and shearing with two-stage pre- and fine grinding in one operation
  • Interface: Touch display with rotary knob for intuitive control
  • Safety & Control: Integrated temperature sensor and overload prevention via controlled feed rate
  • Efficiency: Very short grinding times with excellent reproducibility
  • Ease of Use: Push-Fit system and cassette design for fast, tool-free accessory changes
  • Prevention of overloads by feeding the sample too quickly

Scope of Supply:

  • Ultra Centrifugal Mill ZM 300
  • 900 mL cassette

Note: Please order rotors and sieves separately.

The ZM 300 provides powerful, precise, and user-friendly sample preparation, making it an essential instrument for high-throughput labs handling complex material matrices.

Product Specifications
  • HS Code #84798200
  • Depth426 mm
  • Ø rotor99 mm
  • Dimensions (WxDxH)452 x 426 x 431 mm
  • Power supply frequency50/60 Hz
  • Height431 mm
  • IP codeIP 20
  • Max. feed particle size10 mm
  • Max. final fineness40 µm
  • Max. speed6000 1/min
  • Max. voltage120 V
  • Min. speed2300 1/min
  • Min. voltage110 V
  • Power supply110 ... 120 V, 50/60 Hz
  • Speed2,300 ... 6,000 1/min
  • TypeZM 300
  • Type of auxiliary energyMains connection
  • Weight38 kg
  • Width452 mm
