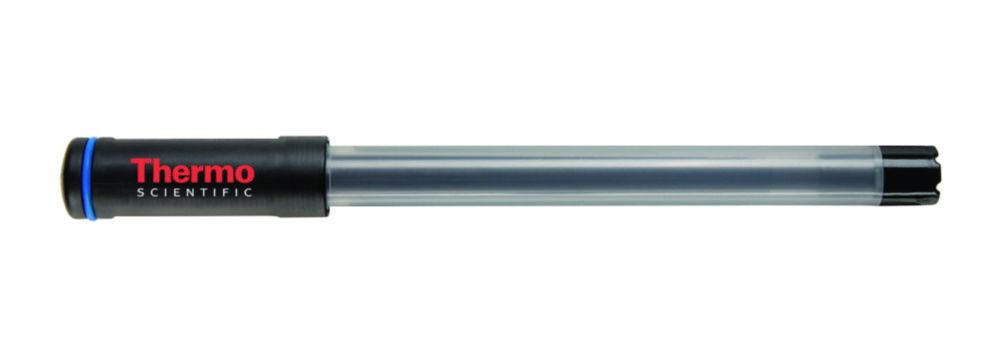

Thermo Orion Ammonia High-Performance Electrode with Waterproof BNC Connector

The Thermo Orion Ammonia High-Performance Electrode is designed for precise ammonia measurements in both drinking water and wastewater applications. Ideal for high-performance applications, this electrode delivers rapid results within one minute for concentrations from 1 ppm and higher. It offers a very good linear response, especially at lower levels, ensuring accurate and reliable measurements. Its waterproof BNC connector makes it compatible with any pH meter equipped with a BNC input and concentration mode.

Product Features:

• Brand: Thermo Orion
• Model: 9512HPBNWP
• Type: Combination Ammonia Ion Selective Electrode
• Connector: Waterproof BNC
• Cable Length: 1 meter
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Electrode Body Material: Epoxy with a translucent design for easy monitoring of fill solution levels
• Dimensions: Length: 120 mm; Diameter: 12 mm
• Concentration Range: 0.01 to 17,000 ppm as NH3 (5 x 10⁻⁷ M to 1 M)
• Response Time: Approximately 1 minute in samples with concentrations of 1 ppm and higher
• Compliance: Meets EPA testing methods for ammonia measurement

Scope of Supply:

• Waterproof BNC connector
• 1 m cable
• 20 loose membranes (Catalog No. 951214)
• One pre-assembled outer body with membrane cap (Catalog No. 951215)
• Two 60 mL bottles of electrode filling solution (Catalog No. 951209)
• Spout cap and tweezers

Enhance your ammonia analysis with the Thermo Orion Ammonia High-Performance Electrode, offering durability, ease of maintenance, and precise measurements for demanding applications.
