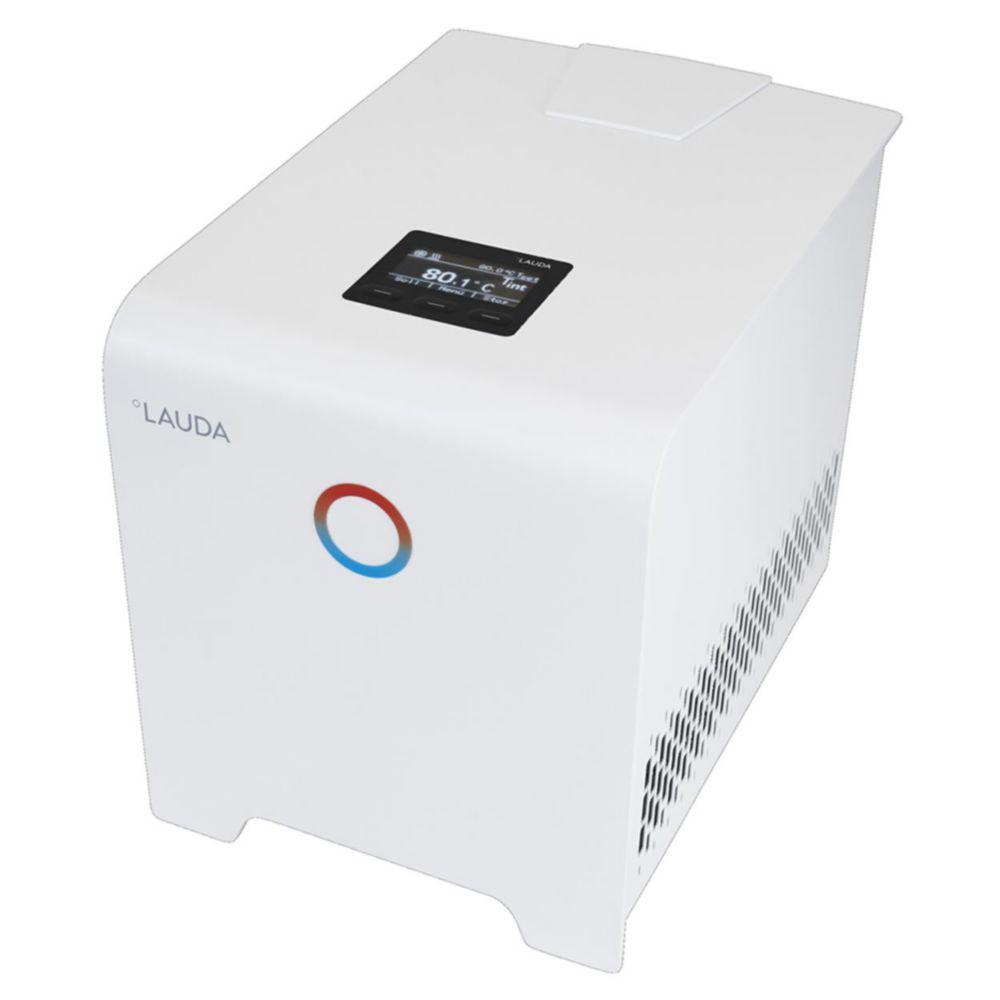

Representative image only
Thermoelectric circulator LOOP L 250 100 - 240 V, 50/60 Hz
Sold by: Scientific Resources
Available Soon
Part #: 7.647 249Manufacturer #: L000580
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Compact, air-cooled circulation thermostat for external applications. The refrigerant-free cooling technology ensures quiet and low-vibration operation.
- Bright and high-contrast graphic OLED display
- Intuitive 3-button operation
- User-friendly menu navigation in five languages
- RS 232 interface
- Pump connections with quick couplings for simple change of applications
- Small size and low weight
- Safety class I/NFL for operation with non-flammable liquids (water, water/glycol)
Product Specifications
- HS Code #84186900
- Cooling capacity at 20 °C0,25 kW
- Ext. dim. (WxDxH)261 x 368 x 312 mm
- Ext. depth368 mm
- Ext. height312 mm
- Ext. width261 mm
- Power supply frequency50/60 Hz
- Heating capacity0.4 kW
- IP codeIP 21
- Max. delivery pressure0.8 bar
- Max. temperature80 °C
- Max. voltage240 V
- Max. volume bath0.3 l
- Min. temperature4 °C
- Min. voltage100 V
- Plug typeCEE
- Power supply100 ... 240 V, 50/60 Hz
- ProgrammableNo
- Temperature stability±0,1 K
- Temperature4 ... 80 °C
- TypeL 250
- Type of auxiliary energyMains connection
- Type of displayOLED
- Volume bath0.3 l
- Weight11.9 kg
