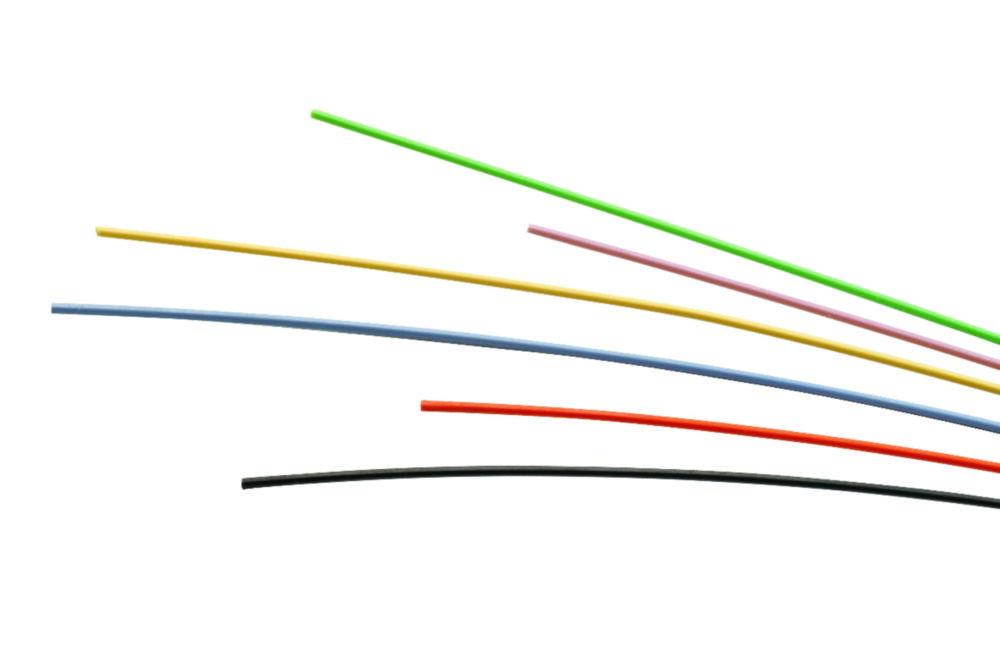

Representative image only
cTrajan Scientific PEEK Tubing, Orange 1/16" OD x 0.013" ID x 10' Length
Sold by: Scientific Resources
Available Soon
Part #: 4.682 121Manufacturer #: 1302013004-10F
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Trajan Scientific PEEK Tubing in orange, measuring 1/16" outer diameter (OD) and 0.013" inner diameter (ID) over a 10-foot length, is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
Key Features:
- Brand: Trajan Scientific
- Material: PEEK (Polyether Ether Ketone)
- Outer Diameter: 1/16 inch (1.6 mm)
- Inner Diameter: 0.013 inch (0.33 mm)
- Length: 10 feet (3.05 meters)
- Color: Orange
- Maximum Pressure: 7,000 psi (483 bar)
- pH Range: 2 to 14
- Maximum Operating Temperature: 100°C
- Applications: Suitable for HPLC, LCMS, and automation systems
This tubing is designed to ensure reproducibility in chromatographic flow rates and results, thanks to its smooth internal surface and tight tolerances. Its bio-inert and bio-compatible nature makes it suitable for a wide range of analytical applications.
Product Specifications
- HS Code #39173200
- ColourOrange
- Ext. Ø1.6 mm
- Int. Ø0.33 mm
- Length3 m
- MaterialPEEK
- Max. temp. resistance100 °C
- Operating pressure483 bar
- Temperature resistance100 °C
- UNSPSC41105108
Variant products
Products related to this item (26)
product | Mfr # | Part # | Product name | Temperature
resistance | Material | Price | Availability | |
1302005001-10F | 4.662 785 | Trajan Scientific PEEK Tubing, Red 1.6 mm OD x 127 µm ID x 304.8 cm | 100 °C | PEEK | $202.30 | |||
1302007002-10F | 4.662 786 | Trajan Scientific PEEK Tubing, Yellow 1.6mm OD x 178µ ID x 304.8 cm | 100 °C | PEEK | $202.30 | |||
1302010003-10F | 4.662 787 | Trajan Scientific PEEK Tubing, Blue 1.6mm OD x 254µ ID x 304.8 cm | 100 °C | PEEK | $147.90 | |||
1302030005-10F | 7.911 249 | Trajan Scientific PEEK Tubing, Green 1/16 x 0.030 x 10' | 100 °C | PEEK | $147.90 | |||
1301015008-10F | 4.682 128 | Trajan Scientific PEEK Tubing Grey 1/32" OD x 0.015" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1301015000-10F | 4.682 141 | Trajan Scientific PEEK Tubing Natural 1/32" OD x 0.015" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1304004001-10F | 4.682 132 | Trajan Scientific PEEK Tubing Red 360 µm OD x 100 µm (0.004") ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1304002000-10F | 4.682 130 | Trajan Peek-Tubing, Natural 360 µm OD x 50 µm (0.002") ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1303062000-10F | 4.682 135 | Trajan Scientific PEEK Tubing Natural 1/8" OD x 0.062" ID x 10' Length | 100 °C | PEEK | $277.10 | |||
1302002500-10F | 4.682 137 | Trajan Scientific PEEK Tubing Natural 1/16" OD x 0.0025" ID x 10' Length | 100 °C | PEEK | $202.30 | |||
1302040000-10F | 4.682 124 | Trajan Scientific PEEK Tubing Natural 1/16" OD x 0.040" ID x 10' Length | 100 °C | PEEK | $147.90 | |||
1304005005-10F | 4.682 133 | Trajan Scientific PEEK Tubing Green 360 µm OD x 125 µm (0.005") ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1304006002-10F | 4.682 134 | Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1301004006-10F | 4.682 140 | Trajan Scientific PEEK Tubing, Black 1/32" OD x 0.004" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1302020004-10F | 7.983 379 | Trajan Scientific PEEK Tubing, Orange 1/16" OD x 0.020" ID x 10' Length | 100 °C | PEEK | $147.90 | |||
1303080000-10F | 4.682 136 | Trajan Scientific PEEK Tubing, Natural 1/8" OD x 0.080" ID x 10' Length | 100 °C | PEEK | $277.10 | |||
1302004006-10F | 4.682 120 | Trajan Scientific PEEK Tubing, Black 1/16" OD x 0.004" ID x 10' Length | 100 °C | PEEK | $202.30 | |||
1304003006-10F | 4.682 131 | Trajan Scientific PEEK Tubing, Black 360 µm OD x 75 µm (0.003") ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1302030001-10F | 4.682 123 | Trajan Scientific PEEK Tubing, Red 1/16" OD x 0.030" ID x 10' Length | 100 °C | PEEK | $147.90 | |||
1301020004-10F | 4.682 129 | Trajan Scientific PEEK Tubing, Orange 1/32" OD x 0.020" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1301007002-10F | 4.682 126 | Trajan Scientific PEEK Tubing, Yellow 1/32" OD x 0.007" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1301010003-10F | 4.682 127 | Trajan Scientific PEEK Tubing, Blue 1/32" OD x 0.010" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1302015000-10F | 4.682 138 | Trajan Scientific PEEK Tubing, Natural 1/16" OD x 0.015" ID x 10' Length | 100 °C | PEEK | $147.90 | |||
1301002500-10F | 4.682 139 | Trajan Scientific PEEK Tubing, Natural 1/32" OD x 0.0025" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1301005001-10F | 4.682 125 | Trajan Scientific PEEK Tubing, Red 1/32" OD x 0.005" ID x 10' Length | 100 °C | PEEK | $192.10 | |||
1302015008-10F | 4.682 122 | Trajan Scientific PEEK Tubing, Grey 1/16" OD x 0.015" ID x 10' Length | 100 °C | PEEK | $147.90 |
