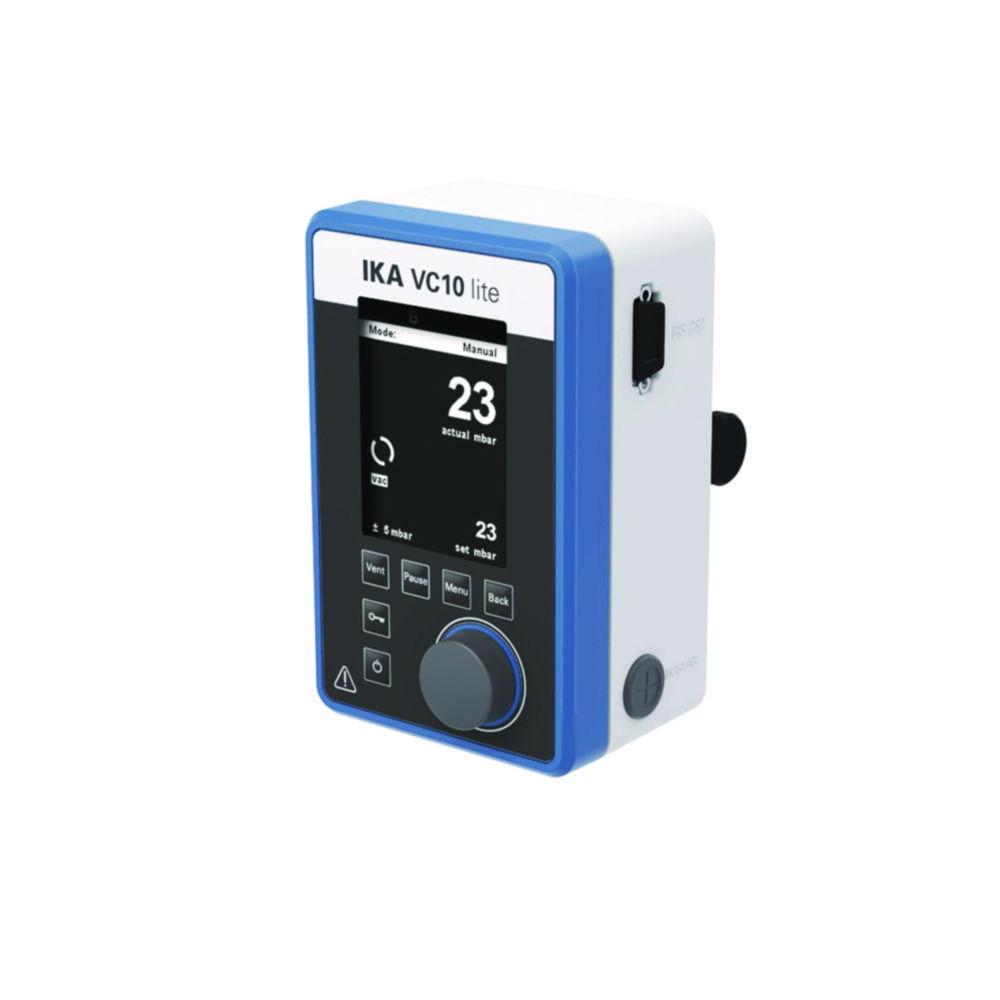

Vaccum Controller VC 10 lite
Sold by: Scientific Resources
Available Soon
Part #: 6.325 885Manufacturer #: 0020111998
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Universal vacuum controller for the controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory.
- Valve cleaning function for long service life
- Integrated vent valve for easy pressure equalisation and aeration with inert gas after process completion
- VENT short key button enables pressure equalisation during a running process
- Up to ten user-defined programmes with up to ten pressure/time sequences can be saved
- USB/RS232 interfaces for connection to the laboratory software labworldsoft®
- Electronic control system for improved process efficiency and higher solvent recovery rates
Product Specifications
- HS Code #90322000
- Depth110 mm
- Dimensions (WxDxH)95 x 110 x 150 mm
- Power supply frequency50/60 Hz
- Height150 mm
- IP codeIP 20
- Max. measured value1100 mbar
- Max. permitted ambient temp.40 °C
- Max. voltage240 V
- Measured range1 ... 1,100 mbar
- Min. measured value1 mbar
- Min. permitted ambient temperature5 °C
- Min. voltage100 V
- Power supply100 ... 240 V, 50/60 Hz
- Rated capacity24 W
- TypeVC 10 lite
- Type of auxiliary energyMains connection
- UNSPSC40151502
- Weight1.3 kg
- Width95 mm
