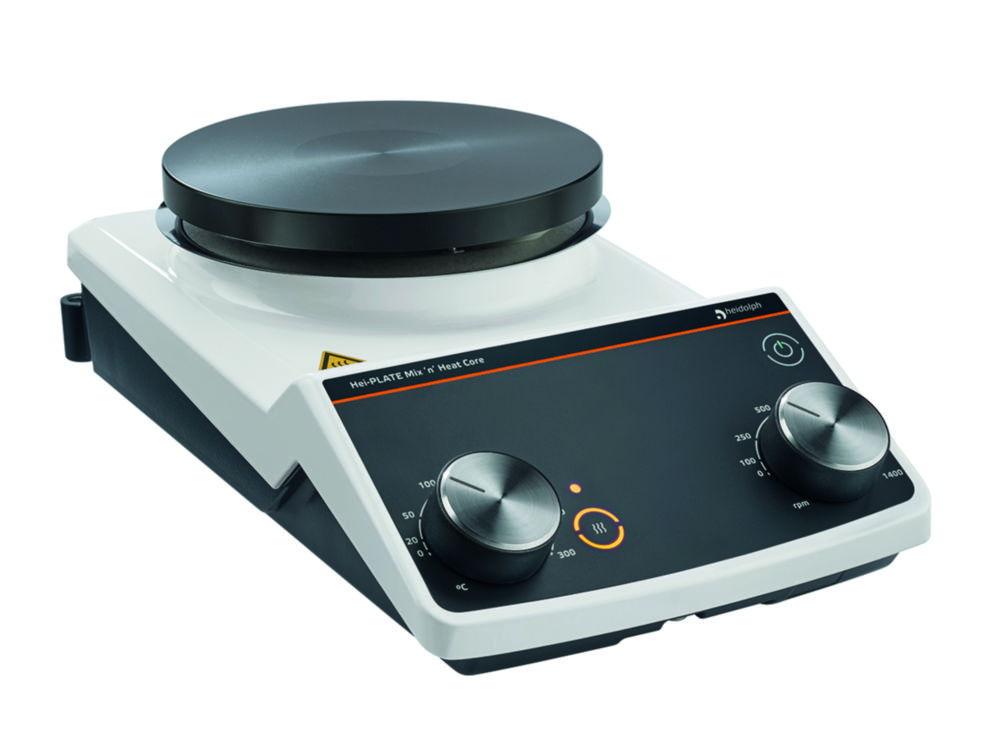

Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm with CH Cable
Representative image only

Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm with CH Cable

Sold by: Scientific Resources
Available Soon
Part #: 6.491 231Manufacturer #: 506-11100-04
Estimated shipping time:Contact us via live chat or via contact us page

SG $1,526.60

See the available (3) variant products
Product overview

The Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm is a high-performance magnetic stirrer and hotplate designed for precise heating and stirring in laboratory applications. Featuring a 145 mm ceramic-coated aluminum plate, it offers rapid heating up to 300°C and stirring speeds up to 1,400 rpm. The unit is equipped with a CH cable, ensuring compatibility with Swiss power outlets. Ideal for tasks requiring accurate temperature control and efficient mixing.

Key Features:

  • Brand: Heidolph
  • Plate Diameter: 145 mm
  • Heating Capacity: 800 W
  • Temperature Range: 20°C to 300°C
  • Speed Range: 100 to 1,400 rpm
  • Plate Material: Kera-Disk ceramic-coated aluminum
  • Power Supply: CH cable for Swiss outlets
  • Safety Features: Residual heat indicator, overheat protection
  • Dimensions (WxDxH): 168 x 299 x 101 mm
  • Weight: Approximately 3 kg

Enhance your laboratory's heating and stirring capabilities with the Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm, offering precision, safety, and reliability for various applications.

Product Specifications
  • HS Code #84198998
  • Colour housingWhite
  • Depth299 mm
  • Dimensions (WxDxH)168 x 299 x 101 mm
  • DisplayAnalogue
  • Heating capacity800 W
  • Heating temperature20 ... 300 °C
  • Height101 mm
  • IP codeIP 42
  • Max. heating temperature300 °C
  • Max. permitted ambient temp.31 °C
  • Max. relative humidity rate80 %
  • Max. speed1400 1/min
  • Max. stirring capacity20 l
  • Max. voltage230 V
  • Min. heating temperature20 °C
  • Min. permitted ambient temperature5 °C
  • Min. speed100 1/min
  • No. of stirring positions1
  • Permitted ambient temperature5 ... 31 °C
  • Plug typeCH
  • Power supply230 V
  • Rated capacity825 W
  • Speed100 ... 1,400 1/min
  • TypeHei-PLATE Mix'n'Heat Core
  • Type of auxiliary energyMains connection
  • UNSPSC41103806
  • Weight3 kg
  • Width168 mm
  • With connection ext. temperature sensorYes
  • With timerNo
  • Working area Ø145 mm
