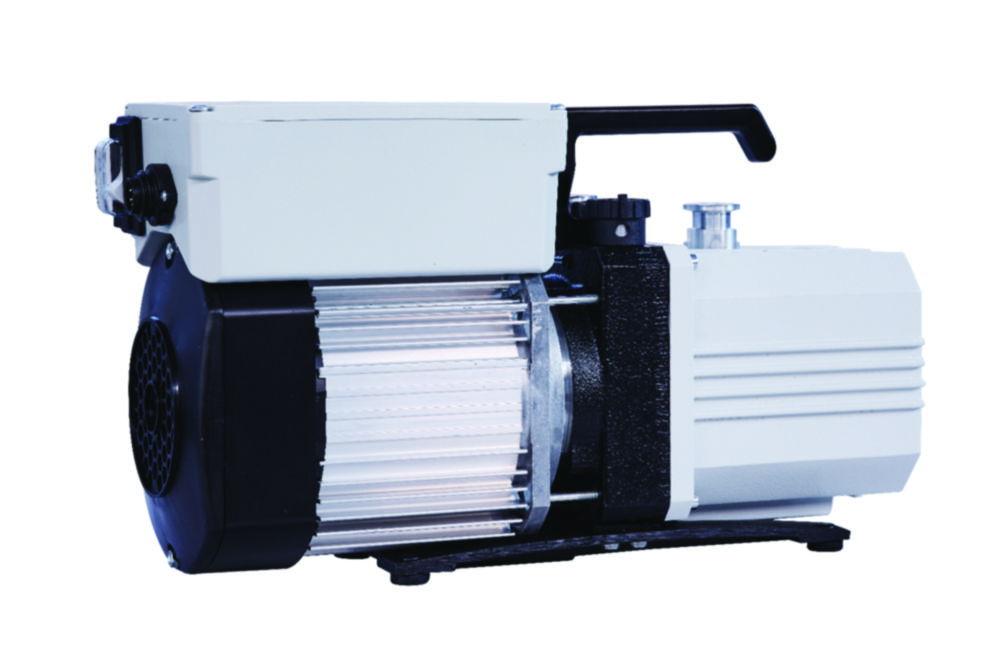

Representative image only
Rotary Valve Pump TRIVAC D 2.5 E EURO Version, incl. CH plug
Sold by: Scientific Resources
Available Soon
Part #: 4.714 976Manufacturer #: 140005
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The oil-sealed, two-stage rotary vane pump is suitable for industrial standard applications.
- Small, compact design
- Low oil back streaming
- High water vapour compatibility
- Suitable for continuous operation at 1000 mbar
- Higher performance thanks to a 3-stage gas ballast device
- Low noise level
Product Specifications
- HS Code #84141025
- Connection pressure sideKF DN 16
- Connection suction sideKF DN 16
- Flow rate3.2 m³/h
- Power supply frequency50/60 Hz
- IP codeIP 54
- Max. permitted ambient temp.40 °C
- Max. voltage230 V
- Min. permitted ambient temperature10 °C
- No. of stages2
- Noise level47 db(A)
- Plug typeCH
- Power supply230 V, 50/60 Hz
- TypeTRIVAC D 2,5 E
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- UNSPSC41105109
- Weight16.1 kg
Just add items to your shopping cart and select “Instant Quote”
