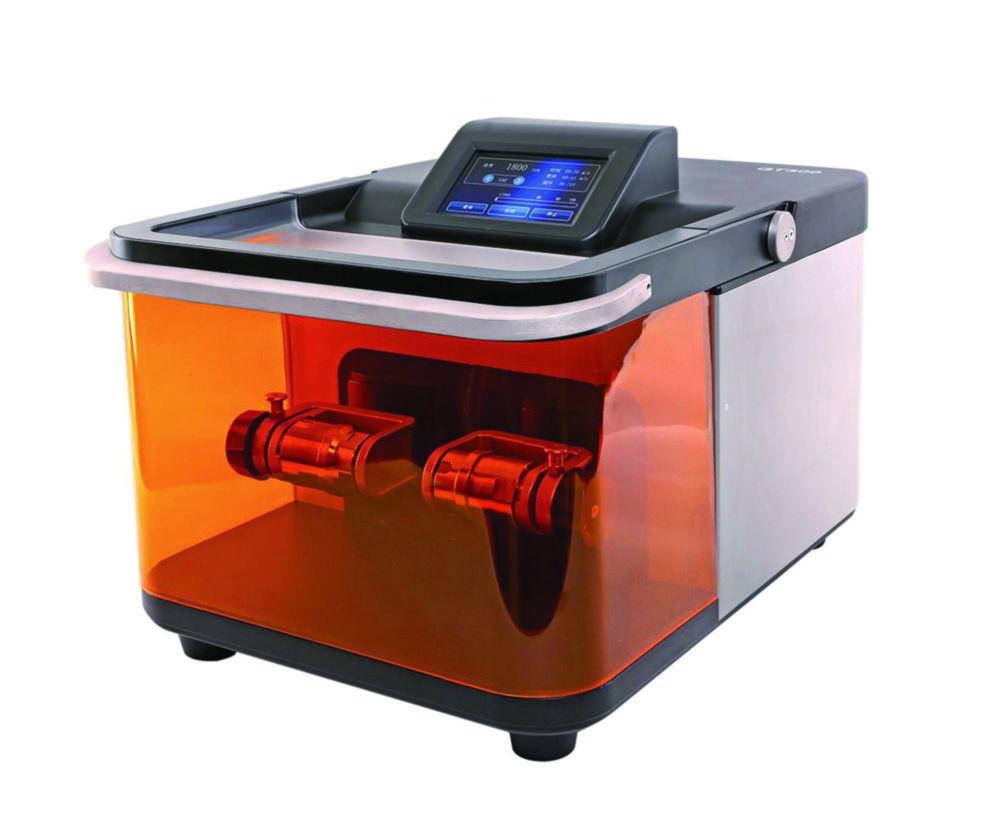

Powteq Micro Ball Mill GT300 220V, 50Hz

Brand:Powteq

Specifications

HS Code #
84798200
Depth
480 mm
Dimensions (WxDxH)
380 x 480 x 281 mm
Feed particle size
10 mm
Power supply frequency
50 Hz
Height
281 mm
Material grinding chamber
Stainless steel
Max. feed particle size
10 mm
Max. final fineness
5 µm
Max. vibration frequency
30 Hz
Max. voltage
220 V

SG $13,719.61

Inc. GST

Available soon

Product description

The Powteq Micro Ball Mill GT300 220V, 50Hz is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.

Key Features:

  • Brand: Powteq
  • Model: GT300
  • Power Supply: 220V, 50Hz
  • Function: Grinding, homogenizing, and mixing of various sample types
  • Applications: Suitable for material science, chemistry, biology laboratories, including cell disruption and DNA/RNA extraction
  • Processing Time: Average of 30 seconds per sample
  • Grinding Stations: Two stations for bowls of 5 to 50 ml volume
  • Speed Range: Variable speed from 180 to 1800 min-1
  • Control: LCD display with programmable grinding parameters (up to 10 stored programs)
  • Safety: Transparent cover and safety interlock
  • Construction: Grinding chamber, clamping system, and swivel arm made of stainless steel
  • Drive: Maintenance-free direct drive system

Scope of Supply:

  • Micro Ball Mill GT300 unit
  • Note: Grinding bowls and balls are not included and must be ordered separately

The Powteq Micro Ball Mill GT300 delivers precision milling with high performance and versatility, making it a valuable asset for laboratory research and testing.

Accessories

Accessories for Micro Ball Mill GT300

ProductDescriptionForMfr#Part#AvailabilityPrice
Gasket for 25 ml grindig jars made of stainless steelGT30011.863.10404.669 599In stockSG $22.24
Jar wrenchGT30002.863.00014.669 598SG $290.92
Cryo kit for cooling the grinding jars with liquid nitrogenGT30002.863.00076.319 530SG $996.91
PTFE adapter for 5 plastic reaction vials 1.5/2.0 mlGT30002.863.00086.319 532SG $900.56
PTFE adapter for 10 plastic reaction vials 1.5/2.0 mlGT30002.863.00096.319 534SG $707.85
PTFE adapter for 6 plastic reaction vials 5.0 mlGT30002.863.00106.319 535SG $837.56
PTFE adapter for 6 PC reaction vials 5.0 mlGT30002.863.00116.319 536SG $837.56

Grinding balls

ProductMaterialØMfr#Part#AvailabilityPrice
Stainless steel15 mm02.863.01084.669 611In stockSG $305.74
Agate5 mm02.863.01304.669 615In stockSG $642.99
Zirconia10 mm02.863.01434.669 624SG $642.99
Agate30 mm02.863.01354.669 620SG $96.36
Agate10 mm02.863.01314.669 616SG $642.99
Stainless steel5 mm02.863.01044.669 607SG $305.74
Agate40 mm02.863.01364.669 621SG $133.42
Stainless steel30 mm02.863.01114.669 614SG $190.86
Agate25 mm02.863.01344.669 619SG $53.74
Zirconia3 mm02.863.01404.669 622SG $531.81
Stainless steel2 mm02.863.01024.669 605SG $546.64
Stainless steel3 mm02.863.01034.669 606SG $546.64
Stainless steel25 mm02.863.01104.669 613SG $96.36
Stainless steel10 mm02.863.01064.669 609SG $305.74
Agate20 mm02.863.01334.669 618SG $53.74
Agate15 mm02.863.01324.669 617SG $53.74
Stainless steel12 mm02.863.01074.669 610SG $305.74
Zirconia5 mm02.863.01414.669 623SG $642.99
Zirconia20 mm02.863.01454.669 626SG $159.36
Stainless steel1 mm02.863.01014.669 604SG $594.81
Stainless steel20 mm02.863.01094.669 612SG $37.06
Zirconia15 mm02.863.01444.669 625SG $138.98
Stainless steel7 mm02.863.01054.669 608SG $305.74

Frequently asked questions

It is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.
