Representative Image

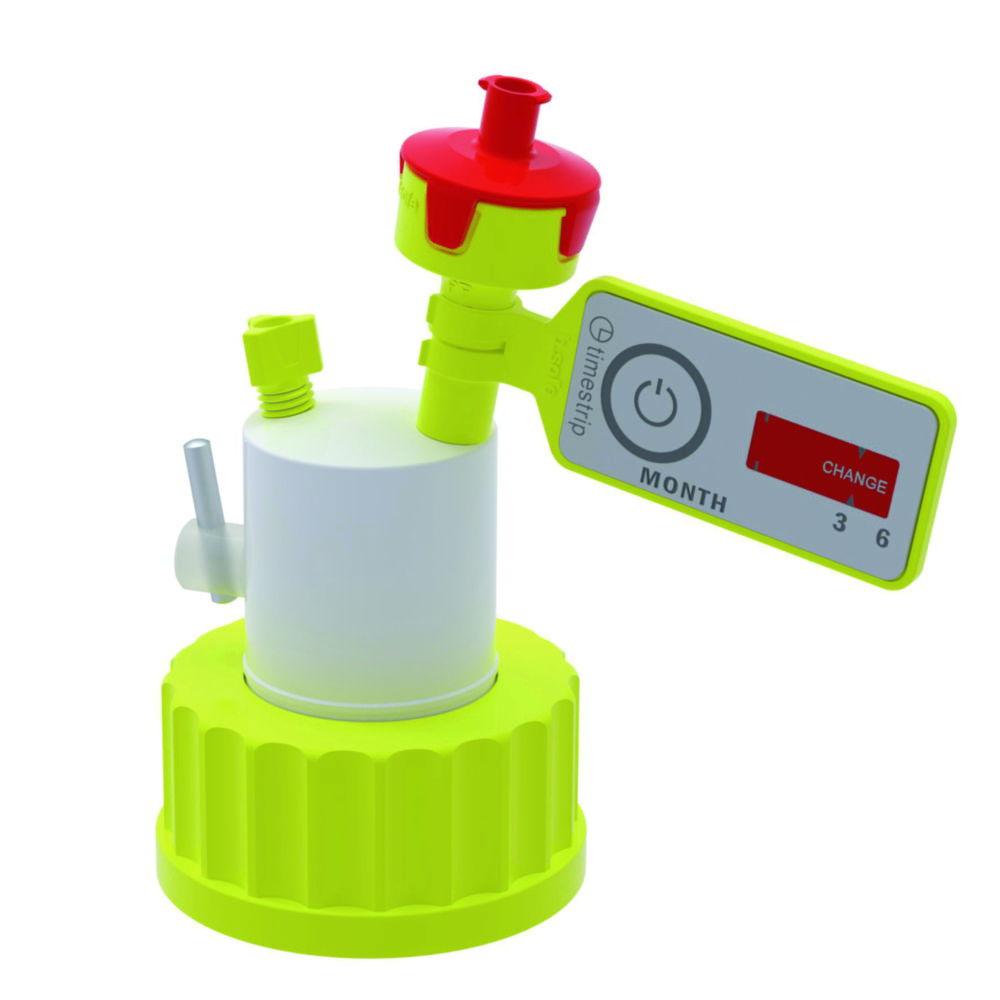

Bohlender b.safe Cap S40, with Stopcocks 2x UNF1/4"

Brand:Bohlender

Specifications

Capillary connections
1
Material
PPS
No. of fittings
1 x 3,2 mm
No. of stopcocks
1
Thread
S 40
UNSPSC
41115700

SG $357.63

Inc. GST

Available soon

Product description

The Bohlender b.safe Cap S40 with Stopcocks 2x UNF 1/4" is a high-quality laboratory screw cap designed for safe and precise fluid handling. Made from chemically resistant PPS, it features a freely movable PTFE insert and two UNF 1/4" female threads for connecting capillary tubing with an outer diameter of 3.2 mm. Each connection is equipped with an integrated stopcock, allowing for individual flow control. The cap also includes a b.safe air valve with a service life indicator for safe venting and pressure equalization. Additionally, it features an extra capillary connector on the bottom side of the lid, enhancing system flexibility.

Key Features:

  • Brand: Bohlender
  • Material: PPS with freely movable PTFE insert
  • Thread Size: S40
  • Capillary Connections: 2 x UNF 1/4" female threads (for 3.2 mm OD tubing)
  • Integrated Stopcocks: 2 for precise individual flow control
  • Additional Feature: Extra capillary connector on the bottom of the lid
  • Air Valve: b.safe air valve with service life indicator
  • Application: Ideal for controlled fluid transfer in analytical and preparative lab environments
  • Packaging: Sold individually

Scope of Supply:

  • 2 x PFA fittings (top and bottom)
  • 2 x integrated stopcock connections
  • 1 x b.safe air valve with service life indicator

This cap is an essential solution for laboratories requiring secure, controlled, and customizable fluid connections for capillary systems.

Downloads

Accessories

Air valves, PP

ProductMaterialØMfr#Part#AvailabilityPrice
PP20 mmM 505-016.313 842In stockSG $142.68
PP20 mmM 505-026.313 843In stockSG $379.86
PP20 mmM 505-056.313 844In stockSG $1,584.32

Fittings, PFA, for Caps and Waste Caps

ProductMaterialColourMfr#Part#AvailabilityPrice
PFAGreenM 501-064.681 835SG $122.30
PFAVioletM 501-114.681 836SG $122.30
PFAGreyM 501-124.681 837SG $122.30
PFAWhiteM 501-154.681 838SG $122.30
PFABlueM 501-164.681 839SG $122.30
PFARedM 501-174.681 840SG $124.15
PFAYellowM 501-184.681 841SG $120.44

Frequently asked questions

It is a high-quality laboratory screw cap designed for safe and precise fluid handling. Made from chemically resistant PPS, it features a freely movable PTFE insert and two UNF 1/4" female threads for connecting capillary tubing with an outer diameter of 3.2 mm. Each connection is equipped with an integrated stopcock, allowing for individual flow control. The cap also includes a b.safe air valve with a service life indicator for safe venting and pressure equalization. Additionally, it features an extra capillary connector on the bottom side of the lid, enhancing system flexibility.
