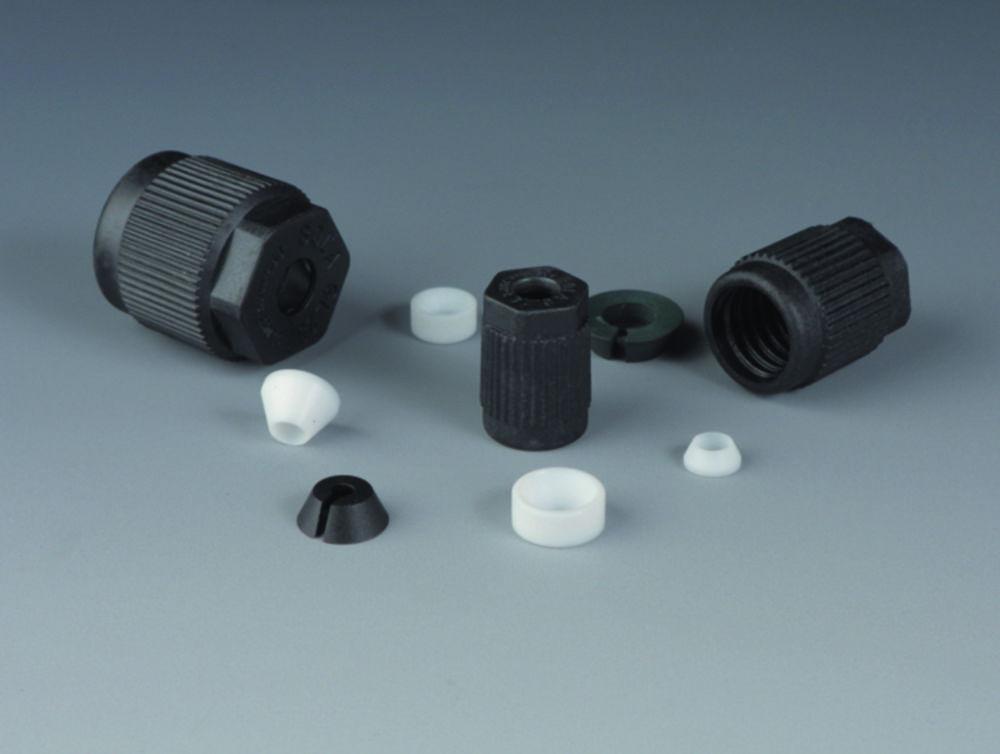

Bohlender HT Laboratory Screw Joint GL 18 Ø 2.0 mm, SW 22, PPS

The Bohlender HT Laboratory Screw Joint GL 18 Ø 2.0 mm, SW 22, PPS is designed for secure and reliable connections in laboratory settings. Manufactured by Bohlender, this screw joint is ideal for connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is commonly used for fixing probes, thermometers, dip tubes, or cables in reaction vessels.

Key Features:

• Brand: Bohlender
• Material: Black PPS (Polyphenylene Sulfide)
• Thread Size: GL 18
• Outer Diameter of Tubing: 2.0 mm
• Wrench Size: SW 22
• Temperature Range: -50°C to 250°C
• Pressure Resistance: Up to 10 bar
• Vacuum Compatibility: Suitable for vacuum applications
• Sealing Components: V-ring (PPS), tapered ring and sealing ring (both PTFE), O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium)
• Compliance: FDA conformity

This screw joint offers excellent chemical resistance, ensuring the medium is only exposed to PTFE, making it a reliable choice for various laboratory applications.

Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 18 Ø 2.0 mm, SW 22, PPS used for?

It is designed for secure and reliable connections in laboratory settings. Manufactured by Bohlender, this screw joint is ideal for connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is commonly used for fixing probes, thermometers, dip tubes, or cables in reaction vessels.

2. Is this product suitable for secure and reliable connections in laboratory settings?

Yes. It is designed for secure and reliable connections in laboratory settings, and offers an outer diameter of tubing of 2.0 mm and a pressure resistance of up to 10 bar to support this kind of work.

3. What outer diameter of tubing and pressure resistance does this product have?

It has an outer diameter of tubing of 2.0 mm and a pressure resistance of up to 10 bar.

4. What is this product made from and what features does it include?

It is made from black PPS (Polyphenylene Sulfide). It also offers GL 18, SW 22 and -50°C to 250°C.
