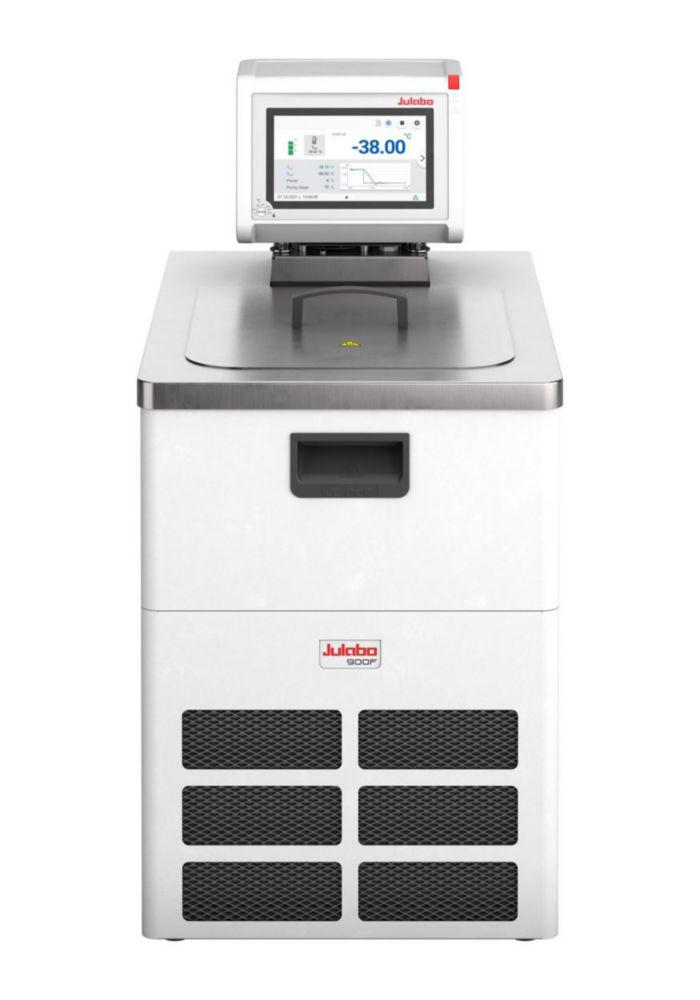

Julabo MAGIO MS-310F Refrigerated Circulating Thermostat -30°C to +200°C, with Natural Refrigerant, 23×40×65 cm, 2 kW
Representative image only

Julabo MAGIO MS-310F Refrigerated Circulating Thermostat -30°C to +200°C, with Natural Refrigerant, 23×40×65 cm, 2 kW

Sold by: SCIENTIFIC RESOURCES PTE LTD
Available Soon
Part #: 9.858 406Manufacturer #: 9032713.N1
Estimated shipping time:Contact us via live chat or via contact us page

€10005.00

See the available (7) variant products

Product overview

The Julabo MAGIO MS-310F Refrigerated Circulating Thermostat offers precise temperature control ranging from -30°C to +200°C, making it ideal for demanding external applications. Utilizing a natural refrigerant, this unit ensures environmentally friendly operation without compromising performance.

Designed with a powerful 2 kW heating capacity and a continuously adjustable pressure/suction pump, it delivers flow rates between 16 to 31 l/min and pressure from 0.24 to 0.92 bar. The compact dimensions of 23×40×65 cm make it suitable for various laboratory setups.

Key Features:

  • Brand: Julabo
  • Temperature Range: -30°C to +200°C
  • Heating Capacity: 2 kW
  • Natural Refrigerant: Environmentally friendly cooling
  • Dimensions (W×L×H): 23×40×65 cm
  • Pump Capacity: Flow rate of 16–31 l/min; Pressure of 0.24–0.92 bar
  • Temperature Stability: ±0.01°C
  • Interfaces: USB, RS232, Ethernet, Modbus TCP/IP
  • Display: Large, high-resolution TFT touch display with multilingual interface

This thermostat is an indispensable tool for laboratories requiring precise and reliable temperature control in various research and analytical settings.



Frequently Asked Questions

1. What is the Julabo MAGIO MS-310F Refrigerated Circulating Thermostat -30°C to +200°C, with Natural Refrigerant, 23×40×65 cm, 2 kW used for?

It offers precise temperature control ranging from -30°C to +200°C, making it ideal for demanding external applications. Utilizing a natural refrigerant, this unit ensures environmentally friendly operation without compromising performance.

2. Is this product suitable for various laboratory setups?

Yes. It is designed for various laboratory setups, and offers a heating capacity of 2 kW and a dimensions (W×L×H) of 23×40×65 cm to support this kind of work.

3. What heating capacity and dimensions (W×L×H) does this product have?

It has a heating capacity of 2 kW, a dimensions (W×L×H) of 23×40×65 cm and a temperature stability of ±0.01°C.

4. What temperature range and natural refrigerant does this product offer?

It offers -30°C to +200°C, environmentally friendly cooling, flow rate of 16–31 l/min; Pressure of 0.24–0.92 bar and USB, RS232, Ethernet, Modbus TCP/IP.

Product Specifications

  • HS Code #84198998
  • Bath depth150 mm
  • Cooling capacity at 20 °C0,26 kW
  • Depth opening150 mm
  • Opening (WxD)130 x 150 mm
  • Ext. dim. (WxDxH)230 x 400 x 650 mm
  • Ext. depth400 mm
  • Ext. height650 mm
  • Ext. width230 mm
  • Power supply frequency50/60 Hz
  • Heating capacity2 kW
  • IP codeIP 20
  • Material bathStainless steel
  • Max. delivery pressure0.92 bar
  • Max. suction pressure0.4 bar
  • Max. temperature200 °C
  • Max. voltage230 V
  • Max. volume bath4 l
  • Min. temperature-30 °C
  • Min. voltage200 V
  • Min. volume bath3 l
  • Power supply200 ... 230 V, 50/60 Hz
  • RefrigerantR290
  • Temperature stability±0,01 °C
  • Temperature-30 ... 200 °C
  • TypeMS-310F
  • Type of auxiliary energyMains connection
  • UNSPSC41103701
  • Volume bath3 ... 4 l
  • Weight29 kg
  • Width opening130 mm
  • With lidYes
  • With timerYes
