Representative Image

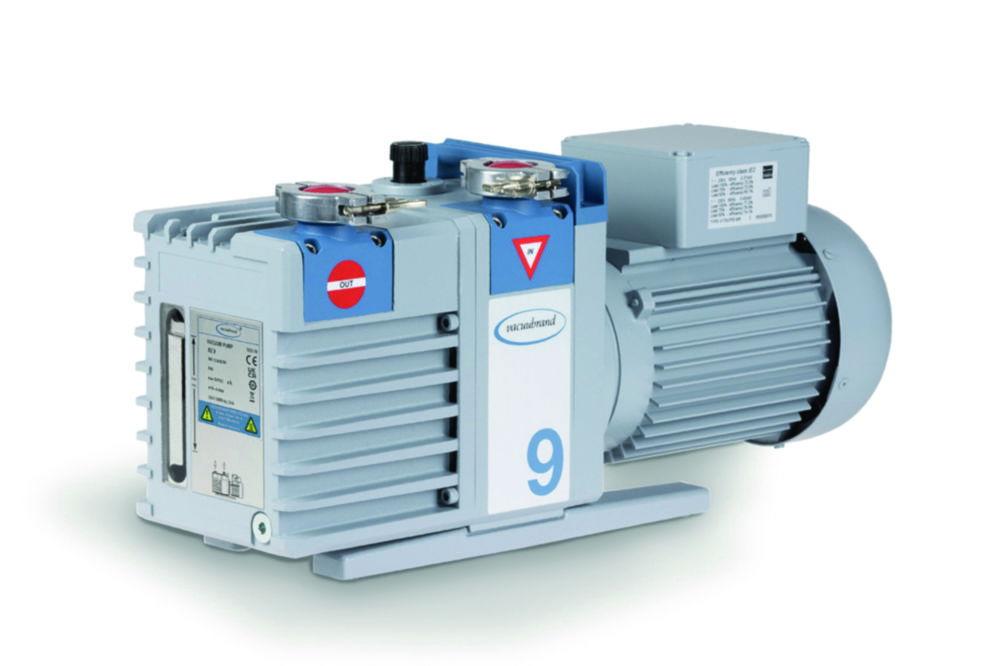

Vacuubrand Rotary Vane Pump RZ 9, Two-Stage, 230 V/50–60 Hz, UK/IN Mains Cable

Specifications

Connection pressure side
KF DN 25
Connection suction side
KF DN 25
Depth
503 mm
Dimensions (WxDxH)
156 x 503 x 240 mm
Flow rate
148.33 l/min
Power supply frequency
50/60 Hz
Height
240 mm
IP code
IP 40
Max. voltage
230 V
No. of stages
2

SG $8,512.68

Inc. GST

Available soon

Product description

The Vacuubrand Rotary Vane Pump RZ 9 is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a UK/IN mains cable, ensuring compatibility with UK and Indian electrical standards.

Key Features:

  • Brand: Vacuubrand
  • Model: RZ 9
  • Type: Two-stage rotary vane pump
  • Voltage: 230 V/50–60 Hz
  • Power Connection: UK/IN mains cable
  • Pumping Speed: 8.9 m³/h at 50 Hz
  • Ultimate Vacuum: 2 x 10−3 mbar
  • Water Vapor Tolerance: 40 mbar with gas ballast
  • Noise Level: 52 dBA
  • Weight: 24.8 kg
  • Dimensions (L × W × H): 503 × 156 × 240 mm
  • Applications: Suitable for lyophilization, vacuum distillation, and drying chambers

Scope of Supply:

  • Rotary vane pump
  • Manual

This pump offers robust performance and is ideal for applications that demand consistent and efficient vacuum generation.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081SG $187.15
PVC34.9 mm206860634.714 084SG $383.57
PVC38.1 mm206860654.714 085SG $446.57
PVC15.9 mm206860614.714 082SG $216.80
PVC22.3 mm206860624.714 083SG $237.18

Frequently asked questions

It is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a UK/IN mains cable, ensuring compatibility with UK and Indian electrical standards.
