IKA Vacuum Pump VACSTAR Lite Starter Solution
Sold by: Scientific Resources
Available Soon
Part #: 4.714 169Manufacturer #: 0010014496
Estimated shipping time:Contact us via live chat or via contact us page
Product overview

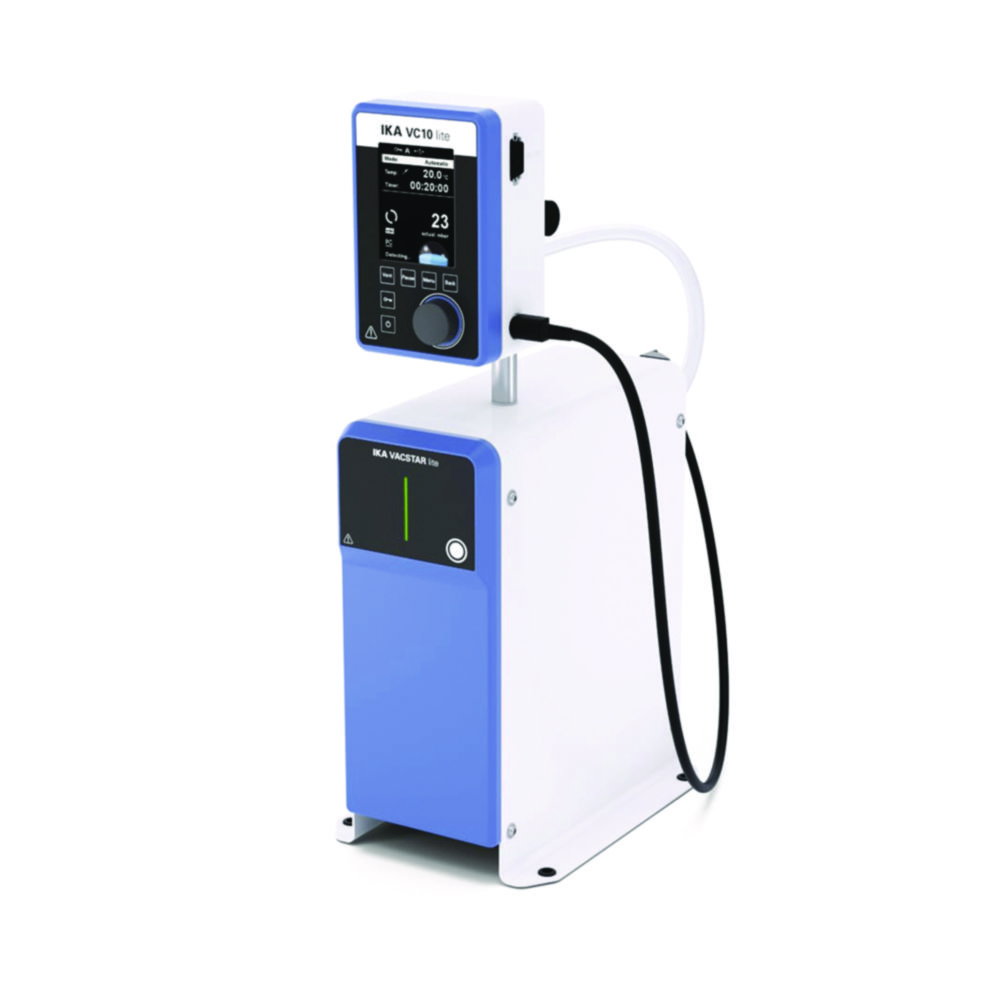

The IKA Vacuum Pump VACSTAR Lite Starter Solution is a laboratory vacuum pump package designed for controlled vacuum applications. Supplied with the VACSTAR lite diaphragm vacuum pump, VC 10 lite vacuum controller, and stand rod, this solution provides the key components required for efficient vacuum operation.
Key Features:
- Brand: IKA
- Product Type: Vacuum pump solution
- Model: VACSTAR lite Starter Solution
- Pump Type: Diaphragm vacuum pump
- Controller: VC 10 lite vacuum controller
- Scope Of Supply: Diaphragm vacuum pump VACSTAR lite, vacuum controller VC 10 lite, stand rod
This IKA vacuum pump solution is suitable for laboratories requiring a coordinated diaphragm vacuum pump, controller, and stand setup.
Product Specifications
- HS Code #84141089
- Connection pressure sideDN 8
- Connection suction sideDN 8
- Depth280 mm
- Dimensions (WxDxH)115 x 280 x 445 mm
- Flow rate1 m³/h
- Power supply frequency50/60 Hz
- Height445 mm
- IP codeIP 20
- Max. permitted ambient temp.40 °C
- Max. voltage240 V
- Min. permitted ambient temperature5 °C
- Min. voltage100 V
- No. of stages2
- Noise level54 db(A)
- Power supply100 ... 240 V, 50/60 Hz
- Rated capacity144 W
- TypeVACSTAR lite Starter Solution
- Type of auxiliary energyMains connection
- Ultimate vacuum9 mbar
- UNSPSC40151502
- Weight9.8 kg
- Width115 mm
