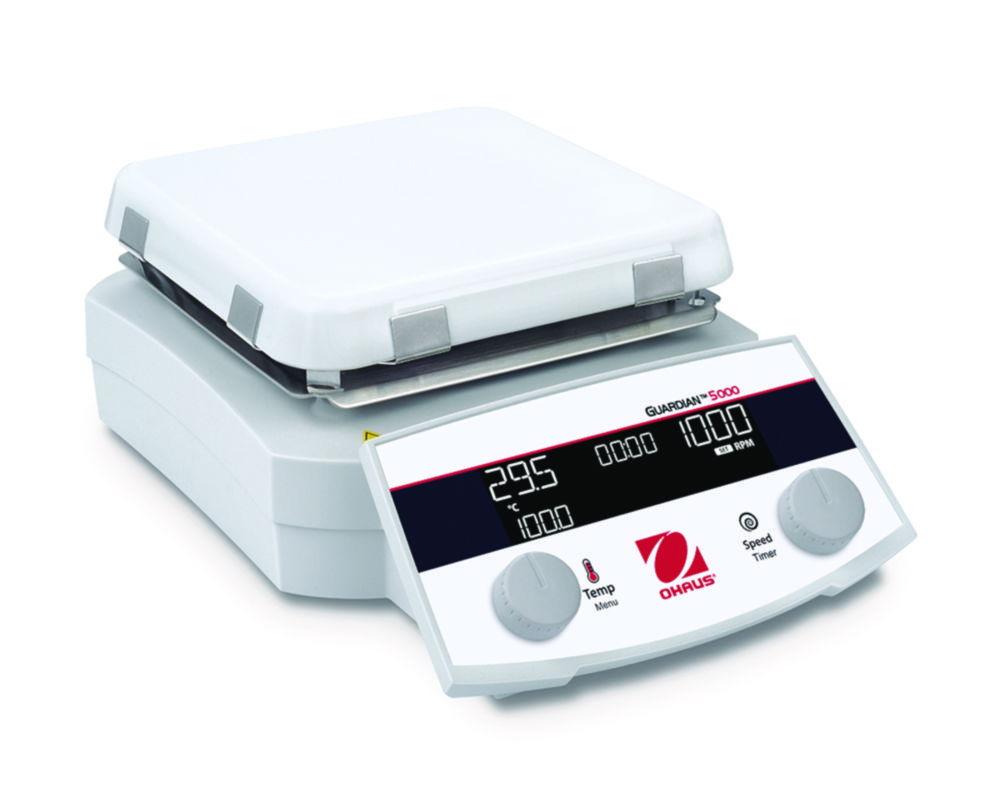

Ohaus Guardian 5000 Hotplate Stirrer e-G52HS07C (230V EU)
Representative image only

Ohaus Guardian 5000 Hotplate Stirrer e-G52HS07C (230V EU)

Sold by: SCIENTIFIC RESOURCES PTE LTD
Available Soon
Part #: 4.702 911Manufacturer #: 30541642
Estimated shipping time:Contact us via live chat or via contact us page

€829.00

See the available (1) variant product

Product overview

The Ohaus Guardian 5000 Hotplate Stirrer e-G52HS07C (230V EU) is engineered for precision and safety in laboratory applications. Featuring a 7 x 7 inch (18 x 18 cm) ceramic top plate, this unit offers uniform heat distribution and robust stirring capabilities. With a temperature range of ambient +5°C to 550°C and a stirring speed range of 50 to 1800 rpm, it accommodates a variety of heating and mixing requirements.

Key Features:

  • Brand: Ohaus
  • Functionality: Combined heating and stirring with digital control
  • Plate Size: 7 x 7 inches (18 x 18 cm) ceramic
  • Temperature Range: Ambient +5°C to 550°C
  • Speed Range: 50 to 1800 rpm
  • Capacity: Up to 20 liters
  • Display: High-contrast LCD with intuitive interface
  • Safety Features: Includes SafetyHeat™, SmartHeat™, and Run Dry Protection systems
  • Communication: RS232 port for data logging and remote control
  • Power Supply: 230V, 50Hz EU plug

This hotplate stirrer is ideal for laboratories requiring reliable and precise heating and stirring solutions, ensuring safety and efficiency in various applications.



Frequently Asked Questions

1. What is the Ohaus Guardian 5000 Hotplate Stirrer e-G52HS07C used for?

It is engineered for precision and safety in laboratory applications. Featuring a 7 x 7 inch (18 x 18 cm) ceramic top plate, this unit offers uniform heat distribution and robust stirring capabilities. With a temperature range of ambient +5°C to 550°C and a stirring speed range of 50 to 1800 rpm, it accommodates a variety of heating and mixing requirements.

2. Is this product suitable for mixing compatible laboratory samples or vessels within the stated capacity and speed limits?

Yes. It is designed for mixing compatible laboratory samples or vessels within the stated capacity and speed limits, and offers a plate size of 7 x 7 inches (18 x 18 cm) ceramic and a speed range of 50 to 1800 rpm to support this kind of work.

3. What plate size and speed range does this product have?

It has a plate size of 7 x 7 inches (18 x 18 cm) ceramic, a speed range of 50 to 1800 rpm and a capacity of up to 20 liters.

4. What functionality and temperature range does this product offer?

It offers combined heating and stirring with digital control, ambient +5°C to 550°C, high-contrast LCD with intuitive interface and safetyHeat™, SmartHeat™, and Run Dry Protection systems.

Product Specifications

  • HS Code #84198998
  • Amperage7 A
  • Depth329 mm
  • Depth working area180 mm
  • Dimensions (WxDxH)221 x 329 x 116 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Heating capacity1050 W
  • Heating temperatureRT +5 ... 550 °C
  • Height116 mm
  • IP codeIP 32
  • Material housingAluminium
  • Material stirring surfaceAluminium/Ceramic
  • Max. heating temperature550 °C
  • Max. permitted ambient temp.40 °C
  • Max. relative humidity rate80 %
  • Max. speed1800 1/min
  • Max. stirring capacity20 l
  • Max. voltage240 V
  • Min. heating temperature+5 °C
  • Min. permitted ambient temperature5 °C
  • Min. speed50 1/min
  • Min. voltage220 V
  • No. of stirring positions1
  • Permitted ambient temperature5 ... 40 °C
  • Plug typeEU
  • Power supply220 ... 240 V, 50/60 Hz , 7 A
  • Speed50 ... 1,800 1/min
  • Typee-G52HS07C
  • Type of auxiliary energyMains connection
  • UNSPSC41103806
  • Weight4.6 kg
  • Width221 mm
  • Width working area180 mm
  • With connection ext. temperature sensorYes
  • With timerYes
  • Working area (WxD)180 x 180 mm
