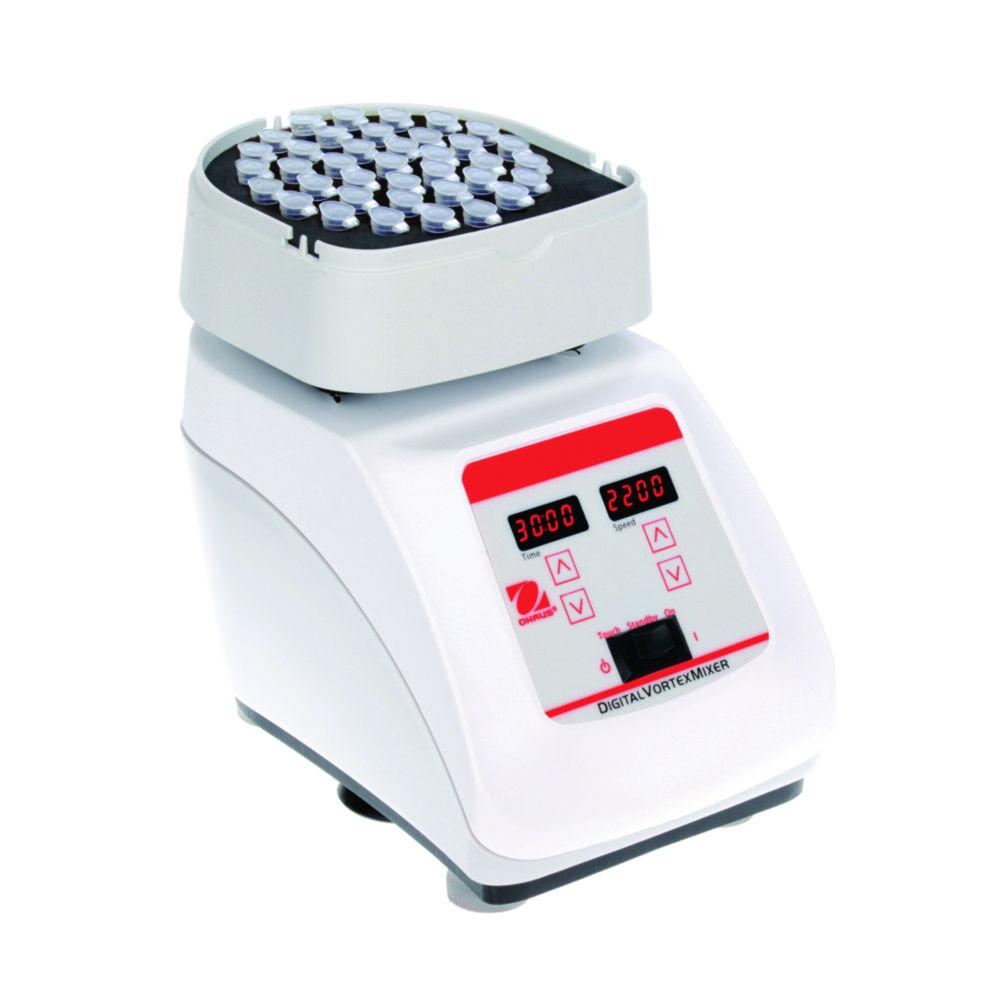

Ohaus Heavy Duty Vortex Mixer VXHDDG Digital, EU Plug

Brand:OHAUS

Specifications

Depth
241 mm
Dimensions (WxDxH)
168 x 241 x 160 mm
Power supply frequency
50/60 Hz
Height
160 mm
Max. loading capacity
1.1 kg
Max. permitted ambient temp.
40 °C
Max. relative humidity rate
85 %
Max. speed
3500 1/min
Max. voltage
230 V
Min. permitted ambient temperature
4 °C

SG $2,197.66

Inc. GST

Available soon

Product description

The Ohaus Heavy Duty Vortex Mixer VXHDDG Digital, EU Plug is engineered for high-performance mixing in laboratory environments. With a robust orbital movement and a 4.9 mm shaking stroke, it ensures thorough mixing of samples. The digital control panel allows precise speed adjustments ranging from 300 to 3,500 rpm, and the integrated timer offers settings from 1 second to 9999 minutes, facilitating consistent mixing durations.

Key Features:

  • Brand: Ohaus
  • Model: VXHDDG Digital
  • Shaking Motion: 4.9 mm orbital shaking stroke
  • Speed range: 300 to 3,500 rpm
  • Timer: 1 second to 9999 minutes
  • Power: 230 V, 50/60 Hz power supply (EU plug)
  • Rated capacity: 30 W
  • Maximum loading capacity: 1.1 kg
  • Ambient temperature range: 4°C to 40°C
  • Humidity range: Up to 85% relative humidity
  • Dimensions: 168 x 241 x 160 mm
  • Weight: 6.8 kg
  • Operating Modes: Touch/Standby/On rocker switch
  • Construction Material: LED displays for speed and time
  • Operation Controls: Up/Down buttons for set-point control

Scope of Supply:

  • Vortex mixer including cup head
  • Universal holder with cover and foam insert for 38 x 1.5 to 2.0 ml micro tubes

This vortex mixer is ideal for applications requiring consistent and thorough mixing, such as cell cultures, immunoassays, protein studies, and more.

Downloads

Accessories

Microplate holder for Vortex Mixers

ProductFor type of vesselsUNSPSCMfr#Part#AvailabilityPrice
Micro plates41103816304002154.659 899SG $207.54
Micro plates41103816304002134.659 897SG $231.62
Micro plates41103816304002124.659 896SG $352.07
Micro plates41103816304002144.659 898SG $298.33

Universal holder for Vortex Mixers

ProductForUNSPSCMfr#Part#AvailabilityPrice
VXHDDG, VXHDAL41103816304002264.659 910SG $216.80

Frequently asked questions

It is engineered for high-performance mixing in laboratory environments. With a robust orbital movement and a 4.9 mm shaking stroke, it ensures thorough mixing of samples. The digital control panel allows precise speed adjustments ranging from 300 to 3,500 rpm, and the integrated timer offers settings from 1 second to 9999 minutes, facilitating consistent mixing durations.
