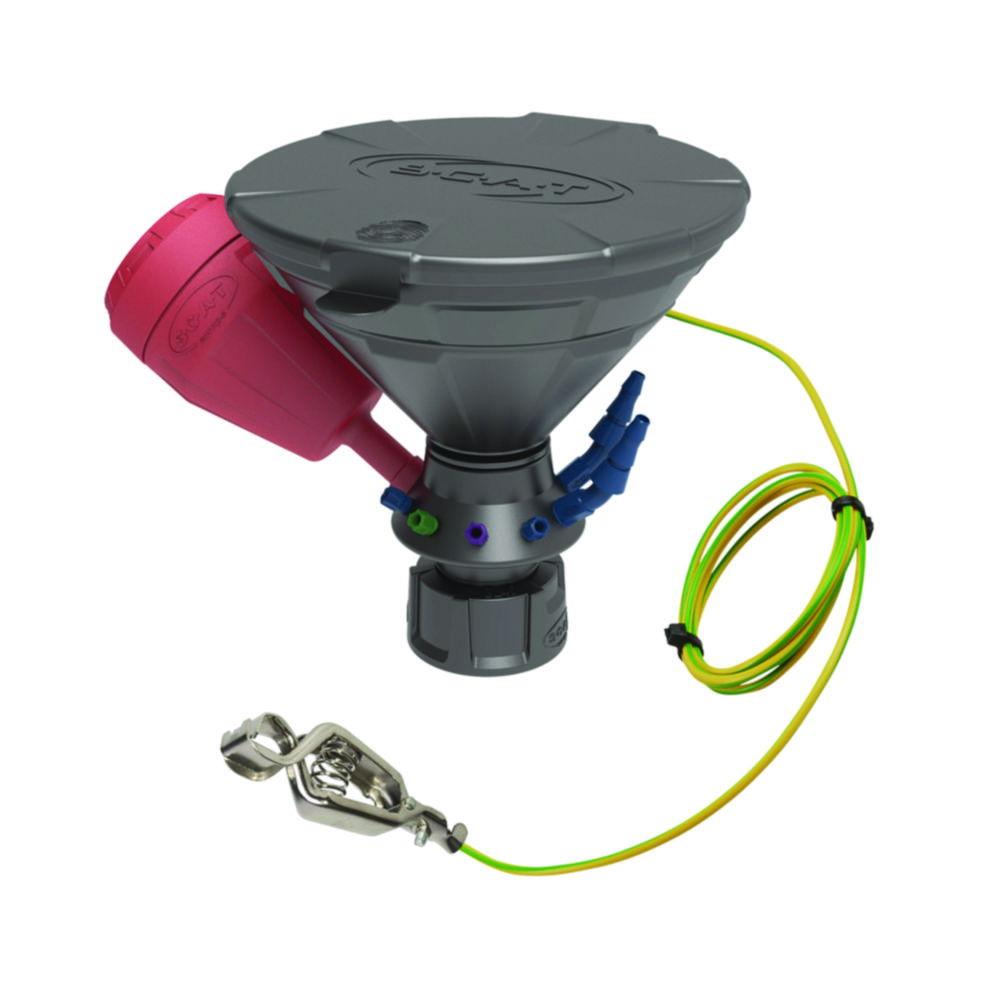

SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel, 4x 1.6/2.3/3.2 mm OD, Electrostatic Conductive

The SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel is designed to ensure safe and efficient solvent waste disposal in laboratory environments. Compatible with GL45-threaded containers, this waste funnel is ideal for collecting HPLC and other laboratory waste liquids securely and without odors. The system includes a funnel with a hinged lid and sealing ring, mounted on a SafetyWasteCap with an exhaust air filter to minimize vapor release. Its electrostatically conductive design and grounding cable prevent static charge build-up, providing additional protection when working with flammable liquids. Hose olives (PP) are included for tubing with an inner diameter of 5 to 11.5 mm, and a removable sieve offers effective filtration of particulates.

Key Features:

• Brand: SCAT
• Model: Universal Waste Hub "JAN"
• Thread Type: GL45
• Connection Ports: 4x 1.6/2.3/3.2 mm OD for secure tubing connections
• Cap Design: SafetyWasteCap with integrated exhaust air filter
• Funnel: Hinged lid with sealing ring to prevent spills and vapor escape
• Filtration: Removable sieve for solid particle retention
• Grounding: Includes grounding cable for electrostatic safety
• Hose Compatibility: PP hose olives for tubing I.D. 5–11.5 mm
• Material: Electrostatic conductive and chemically resistant construction
• Application: Odor-free and safe solvent waste disposal in laboratories

Scope of Supply:

• Safety funnel
• 3 hose olives (NPT 1/8")
• 3 blind fittings (NPT 1/8")
• Fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm
• 4 x blind fittings (UNF 1/4")
• 1 x blind fitting GL 14
• Exhaust filter size M
• Grounding cable

The SCAT Universal Waste Hub "JAN" – GL45 offers a comprehensive, electrostatically safe system for handling solvent waste, making it essential for laboratories that demand safety, cleanliness, and compliance.
