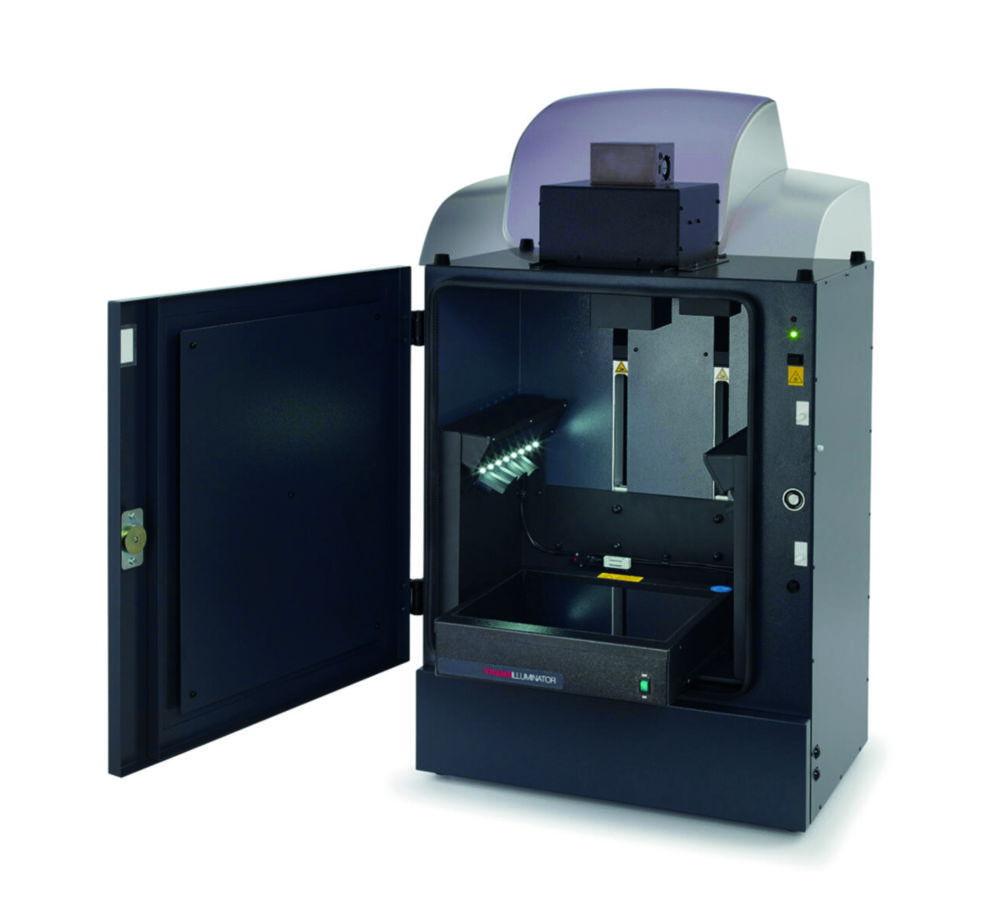

Thistle Scientific ChemiPro XL9 Chemiluminescence Imaging System, without UVT, 230V, 50Hz

Resolution camera

Type

Specifications

Compare models
Depth
550 mm
Dimensions (WxDxH)
570 x 550 x 990 mm
Field of view
345 x 276 mm
Power supply frequency
50 Hz
Height
990 mm
Lens
f0.8/f0.95, auto focus
Max. voltage
230 V
Power supply
230 V, 50 Hz
Resolution camera
9 MP
Sensor
CCD

SG $73,408.45

Inc. GST

Available soon

Product description

The Thistle Scientific ChemiPro XL9 Chemiluminescence Imaging System, without UVT, 230V, 50Hz is a high-performance solution for detecting faint chemiluminescent signals in protein and nucleic acid imaging applications. Designed specifically for laboratories where UV exposure is not required, this system features a highly sensitive, Peltier-cooled CCD camera with 9 Megapixels native and 27 Megapixels effective resolution. It delivers exceptional image clarity and low background noise, making it ideal for Western blot analysis and other low-light applications.

Key Features:

  • Brand: Thistle Scientific
  • Imaging Technology: Chemiluminescence detection for high-sensitivity imaging
  • Camera Resolution: 9 Megapixels (effective resolution up to 27 Megapixels)
  • Cooling System: Peltier-cooled CCD camera for extended exposure with minimal noise
  • Optics: Motorised lens, motorised stage, and 7-position motorised filter wheel
  • Lighting: Long-life white LED EPI illumination for clear and uniform lighting
  • Compliance: CFR21 Part 11 compliant, suitable for regulated lab environments
  • Software: Includes license-free acquisition and analysis software (genePIX and geneQUANT)
  • Power Supply: 230V 50Hz
  • UV Transilluminator: Not included (ideal for UV-free imaging protocols)
  • Application: Western blot imaging, low-light detection, chemiluminescence-based assays

Scope of Supply:

  • Gel documentation system
  • UV emission filter
  • User manual
  • Acquisition and analysis software (genePIX and geneQUANT)

The ChemiPro XL9 system delivers superior image quality and reliable performance for demanding chemiluminescence imaging applications, without the need for UV illumination. An ideal choice for modern research and diagnostic laboratories.

Downloads

Accessories

HI-LED lighting modules for Gel documentation systems chemiPRO

ProductTypeDescriptionMfr#Part#AvailabilityPrice
CHEMIMOD-RGBHI-LED lighting module (red, green and blue)CHEMIMOD-RGB6.319 050SG $15,668.97
CHEMIMOD-RGBIRHI-LED lighting module (red, green, blue and infrared)CHEMIMOD-RGBIR6.316 593SG $18,066.75

Converters for Gel documentation systems chemiPRO and gelPRO

ProductTypeDescriptionMfr#Part#AvailabilityPrice
CS-BLCUV to blue light converterCS-BLC6.317 399SG $1,528.72
CS-WLCUV to visible light converterCS-WLC6.316 592SG $504.02

Compare similar models

chemiPRO XL9 Chemiluminescence Imaging System without UVT, 230V, 50Hz

Manufacturer P/N

CHEMIPRO-XL9-E

Part Number

4.670 742

Manufacturer

Thistle Scientific

Resolution camera

9 MP

chemiPRO XL6 Chemiluminescence Imaging System without UVT, 230V, 50Hz

Manufacturer P/N

CHEMIPRO-XL6-E

Part Number

4.670 741

Manufacturer

Thistle Scientific

Resolution camera

6 MP

Frequently asked questions

It is a high-performance solution for detecting faint chemiluminescent signals in protein and nucleic acid imaging applications. Designed specifically for laboratories where UV exposure is not required, this system features a highly sensitive, Peltier-cooled CCD camera with 9 Megapixels native and 27 Megapixels effective resolution. It delivers exceptional image clarity and low background noise, making it ideal for Western blot analysis and other low-light applications.
