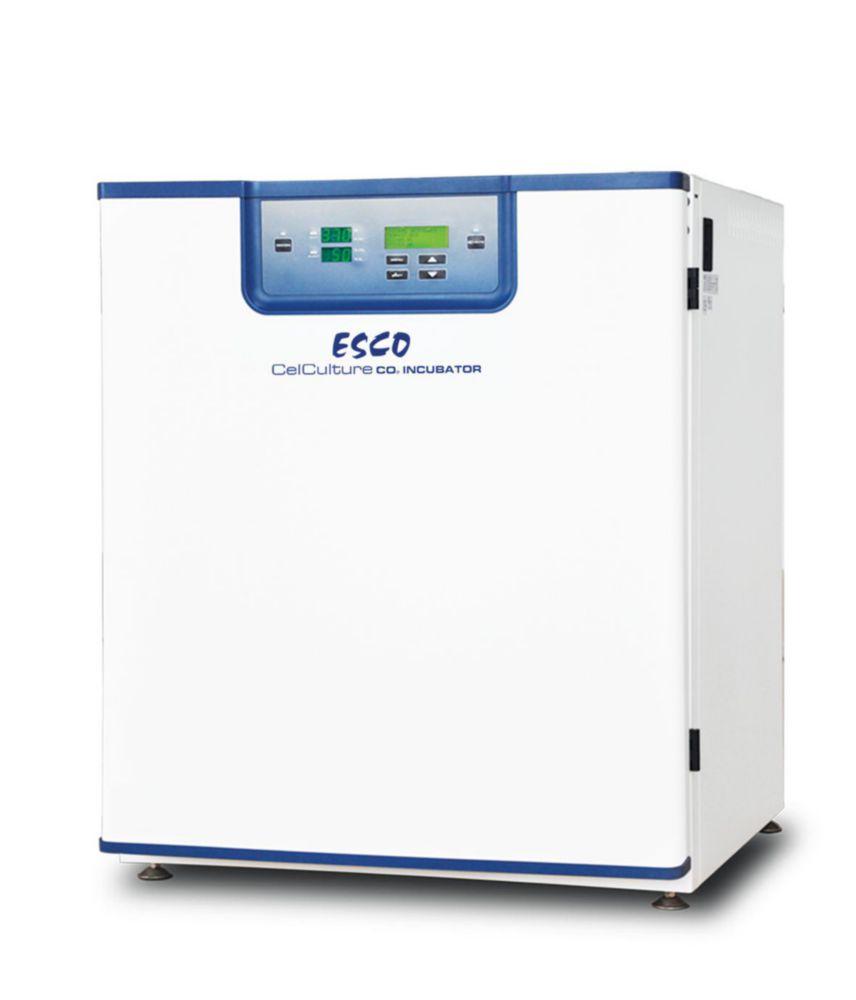

ESCO CelCulture CO₂ Incubator CCL-240B-8-NF, 240 L, IR Sensor, CO₂ Control, Stainless Steel Chamber, 50/60 Hz
Product overview
The ESCO CelCulture CO₂ Incubator CCL-240B-8-NF is a 240-liter capacity incubator designed for precise CO₂ control in laboratory environments. Equipped with an infrared (IR) CO₂ sensor and a stainless steel chamber, it ensures accurate gas monitoring and a contamination-resistant interior. The incubator operates without a ULPA filter, making it suitable for applications where such filtration is not required.
Key Features:
- Brand: ESCO
- Model: CCL-240B-8-NF
- Capacity: 240 liters
- CO₂ Sensor: Infrared (IR) sensor for precise CO₂ monitoring
- Chamber Material: Stainless steel interior for durability and ease of cleaning
- Temperature Range: Ambient +5°C to 60°C
- Humidity Control: Relative humidity maintained between 85% to 90%
- Power Supply: 220–240 V AC, 50/60 Hz
- Dimensions (W x D x H): 750 x 770 x 900 mm
- Weight: 155 kg
This incubator is ideal for laboratories requiring reliable CO₂ control without the need for ULPA filtration, offering a balance between performance and cost-effectiveness.
Frequently Asked Questions
1. What is the ESCO CelCulture CO₂ Incubator CCL-240B-8-NF, 240 L, IR Sensor, CO₂ Control, Stainless Steel Chamber, 50/60 Hz used for?
It is a 240-liter capacity incubator designed for precise CO₂ control in laboratory environments. Equipped with an infrared (IR) CO₂ sensor and a stainless steel chamber, it ensures accurate gas monitoring and a contamination-resistant interior. The incubator operates without a ULPA filter, making it suitable for applications where such filtration is not required.
2. Is this product suitable for precise CO₂ control in laboratory environments?
Yes. It is designed for precise CO₂ control in laboratory environments, and offers a capacity of 240 liters and a power supply of 220–240 V AC, 50/60 Hz to support this kind of work.
3. What capacity and power supply does this product have?
It has a capacity of 240 liters, a power supply of 220–240 V AC, 50/60 Hz and a dimensions (W x d x H) of 750 x 770 x 900 mm.
4. What CO₂ sensor and chamber material does this product offer?
It offers infrared (IR) sensor for precise CO₂ monitoring, stainless steel interior for durability and ease of cleaning, ambient +5°C to 60°C and relative humidity maintained between 85% to 90%.
Product Specifications
- HS Code #84198998
- CO₂ range0 ... 19.5 %
- Depth int.620 mm
- Ext. dim. (WxDxH)750 x 770 x 900 mm
- Ext. depth770 mm
- Ext. height900 mm
- Ext. width750 mm
- Power supply frequency50/60 Hz
- Height int.635 mm
- Int. Dim. (WxDxH)595 x 620 x 635 mm
- Int. width595 mm
- Material interiorStainless steel
- Max. CO₂19.5 %
- Max. no. of inserts7
- Max. relative humidity90 %
- Max. temperature60 °C
- Max. voltage240 V·AC
- Min. CO₂0 %
- Min. relative humidity85 %
- Min. temperature+5 °C
- Min. voltage220 V
- Nominal capacity240 l
- Power supply220 ... 240 V·AC, 50/60 Hz
- Rated capacity2.64 kW
- Relative humidity85 ... 90 %
- TemperatureRT
- TemperatureRT+5 ... 60 °C
- TypeCCL-240B-8-NF
- Type of auxiliary energyMains connection
- UNSPSC41104425
- Weight155 kg
