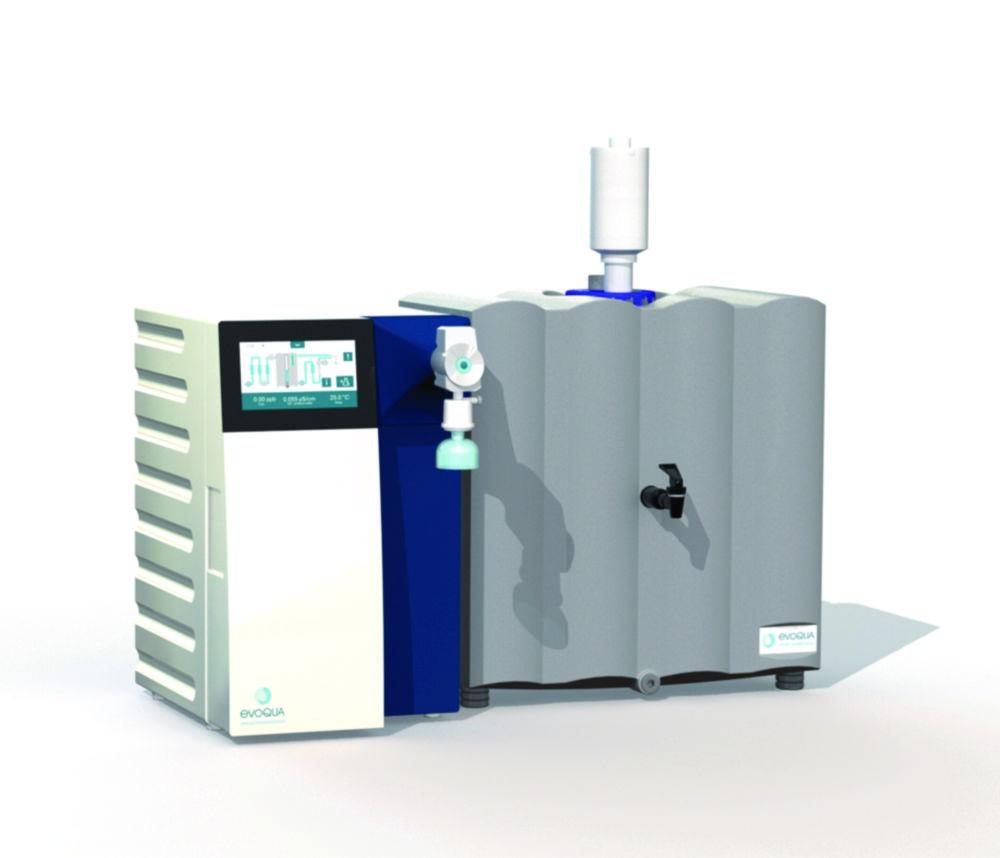

Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM

The Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM is an advanced ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates reverse osmosis (RO), deionization (DI), ultraviolet (UV) sterilization, and Total Organic Carbon (TOC) monitoring to ensure consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. An ion exchange module (DI) provides water with conductivity < 2 µS/cm from the storage tank. The system supports user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

Key Features:

• Brand: Evoqua
• Model: Ultra Clear™ TP ED 10 TWF 60 UV TM
• Part Number: W3T276077
• Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
• TOC Level: < 3 ppb
• Flow Rate: Up to 2 L/min for ultrapure water
• Storage Tank: 60 L capacity for Type II water
• Recovery Rate: > 30% via built-in reverse osmosis
• Display: 7" multi-color touch screen for intuitive operation
• Connectivity: USB, SD card, printer, and Modbus interface
• Energy Saving: Includes energy saving mode
• Disinfection: User-guided disinfection mode
• Installation: Wall mounting possible for space-saving setup
• Dimensions (W x D x H): 340 x 550 x 535 mm (system), 560 x 310 x 770 mm (tank)
• Weight: 31.5 kg
• Power Supply: 100–240 V, 50/60 Hz

Scope of Supply:

• Ultrapure water system
• 1 set of modules and filters

Designed to provide reliable, high-purity water suitable for demanding laboratory applications such as molecular biology, analytical chemistry, and microbiology, the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM ensures efficient, consistent performance with user-friendly operation.

Frequently Asked Questions

1. What is the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM used for?

It is an advanced ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates reverse osmosis (RO), deionization (DI), ultraviolet (UV) sterilization, and Total Organic Carbon (TOC) monitoring to ensure consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. An ion exchange module (DI) provides water with conductivity < 2 µS/cm from the storage tank. The system supports user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

2. Is the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM suitable for laboratories requiring both Type I and Type II water directly from tap water sources?

Yes. It is designed for laboratories requiring both Type I and Type II water directly from tap water sources, and offers a TOC level of < 3 ppb and a flow rate of up to 2 L/min for ultrapure water to support this kind of work.

3. What TOC level and flow rate does the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM have?

It has a TOC level of < 3 ppb, a flow rate of up to 2 L/min for ultrapure water and a storage tank of 60 L capacity for Type II water, and is supplied under manufacturer part number W3T276077.

4. What water quality and connectivity does the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM offer?

It offers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm), USB, SD card, printer, and Modbus interface, energy saving mode and user-guided disinfection mode.

5. How does the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM compare with the Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF?

For optical imaging applications, the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV TM is differentiated by water quality Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm) and toc level < 3 ppb. The Stakpure Ultra Pure Water System OmniaPure-W xs touch UV-TOC/UF from Stakpure is a broader alternative in the same application area rather than a direct equivalent. Compare the required specifications, compatibility and workflow requirements before selection.
