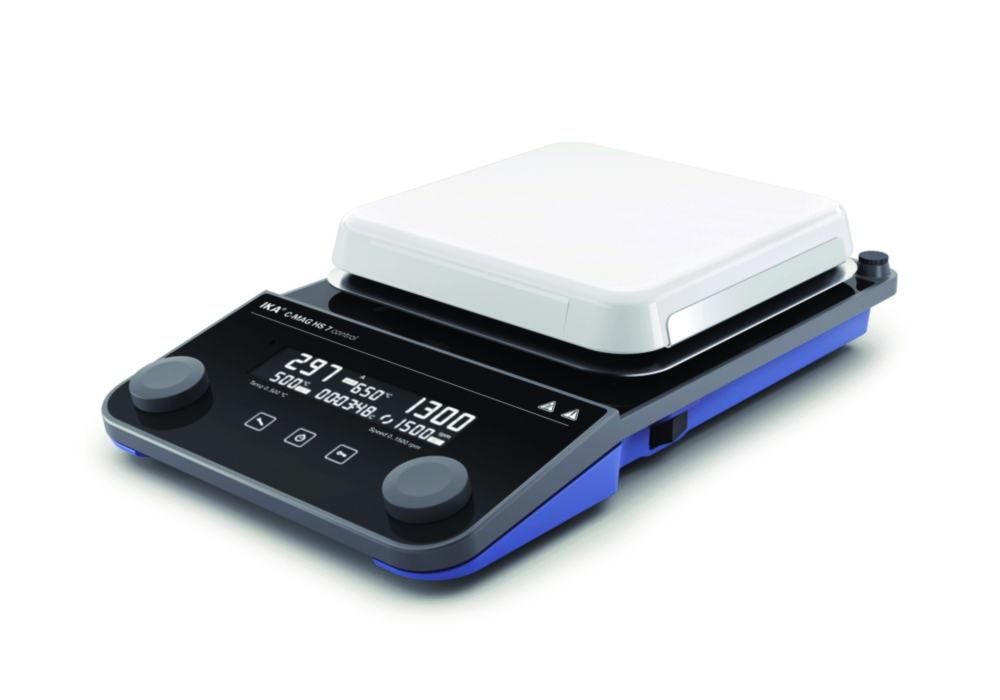

IKA Magnetic Stirrer C-MAG HS 7 Control Ceramic Plate with Heating
Product overview
The IKA Magnetic Stirrer C-MAG HS 7 Control Ceramic Plate with Heating is a high-performance laboratory stirrer designed for efficient mixing and heating. Featuring a ceramic plate, it offers excellent heat resistance and easy cleaning. The built-in heating function ensures precise temperature control, making it ideal for various laboratory applications requiring both stirring and heating. With adjustable speed control, it provides flexibility for a wide range of sample sizes and mixing tasks.
Key Features:
- Brand: IKA
- Model: C-MAG HS 7 Control
- Plate Material: Ceramic for durability and easy cleaning
- Heating Function: Built-in heating for precise temperature control
- Speed Control: Adjustable speed settings for various mixing tasks
- Application: Ideal for laboratory stirring and heating tasks
Scope of supply: Magnetic stirrer, temperature sensor PT 1000.60, magnetic stirring bar IKAFLON® 30 and IKAFLON® 40, screwdriver, USB A-B cable
The IKA Magnetic Stirrer C-MAG HS 7 Control Ceramic Plate with Heating combines stirring and heating in one unit, providing high efficiency and versatility for laboratory work.
Product Specifications
- HS Code #84798200
- Control accuracy heating temperature±5 °C
- Depth354 mm
- Depth working area180 mm
- Dimensions (WxDxH)220 x 354 x 88 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Heating capacity1000 W
- Heating temperatureRT ... 500 °C
- Height88 mm
- IP codeIP 21
- Material housingGlass
- Material stirring surfaceCeramic
- Max. heating rate5 °C/min
- Max. heating temperature500 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. safety temperature650 °C
- Max. speed1500 1/min
- Max. stirring capacity20 l
- Max. voltage230 V
- Min. permitted ambient temperature5 °C
- Min. safety temperature100 °C
- Min. speed50 1/min
- Min. voltage220 V
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeEU
- Power supply220 ... 230 V, 50/60 Hz
- Rated capacity650 W
- Safety temperature100 ... 650 °C
- Speed50 ... 1,500 1/min
- TypeC-MAG HS7 control
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Warranty10 years
- Weight4 kg
- Width220 mm
- Width working area180 mm
- With connection ext. temperature sensorYes
- With timerYes
- Working area (WxD)180 x 180 mm
Just add items to your shopping cart and select “Instant Quote”
