Representative Image

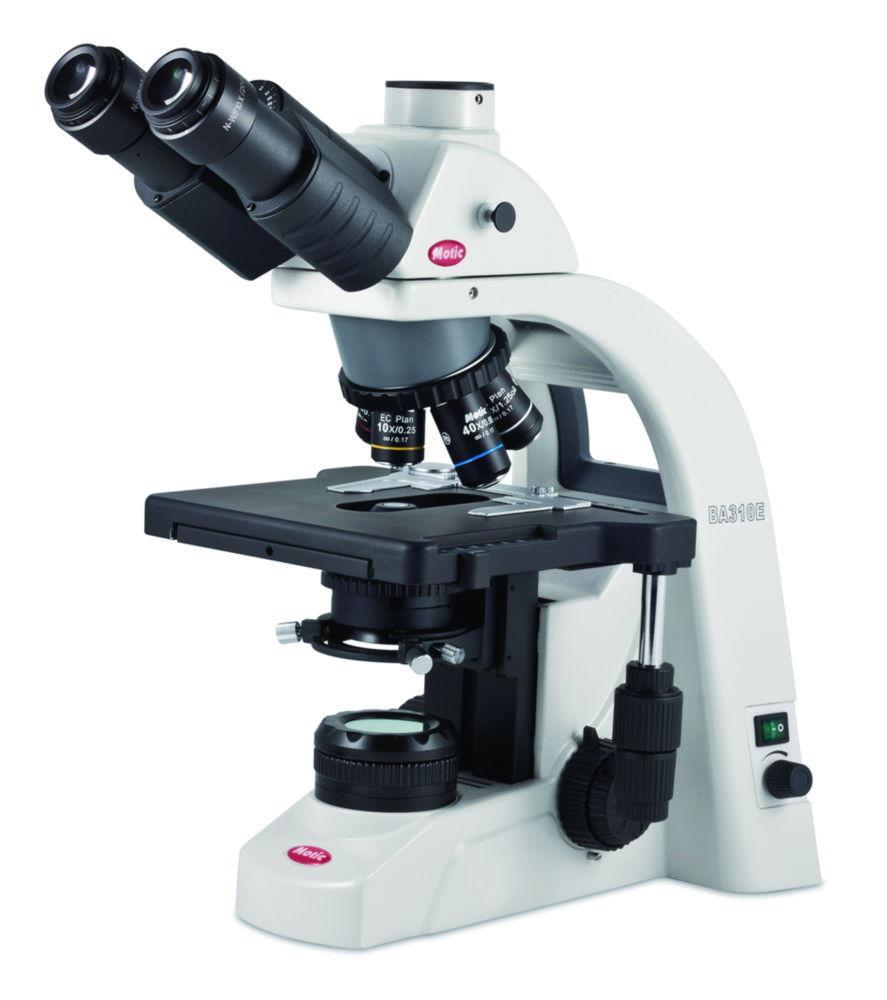

MOTIC Microscope BA310E Binocular N-WF10X/20mm, Binocular Tubus, Type Siedentopf

Brand:Motic

Tube

Specifications

Compare models
HS Code #
90118000
Condenser
Abbe 0.90 /1.25
Depth
400 mm
Dimensions (WxDxH)
220 x 400 x 400 mm
Height
400 mm
Inclination angle tube
30°
Interpupillary distance
48 ... 75 mm
Light type
LED
Magnification objectives
4x, 10x, 40x, 100x
Max. interpupillary distance
75 mm
Max. voltage
240 V

SG $3,022.24

Inc. GST

Available soon

Product description

The MOTIC Microscope BA310E Binocular is a versatile and high-performance microscope designed for laboratory and educational use. Featuring a binocular tubus with the Siedentopf design, it ensures comfortable and precise viewing with adjustable eyepieces for users of different heights. The N-WF10X/20mm eyepiece provides clear and accurate imaging, while the ergonomic design reduces eye strain during extended use. This microscope is ideal for routine laboratory applications and educational settings where reliable, high-quality optics are required.

Key Features:

  • Brand: MOTIC
  • Optical System: Infinity Optics [CCIS]
  • Eyepiece Design: Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20
  • Interpupillary Distance: 48-75 mm
  • Eyepieces: High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecups
  • Nosepiece: Reversed quintuple revolving nosepiece
  • Objectives: CCIS EC Plan 4x, 10x, 40x-S, 100x-S-Oil
  • Mechanical Stage: Built-in low position coaxial, rackless mechanical stage (right hand control)
  • Condenser: Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
  • Optical Control: Koehler illumination 3 W LED with intensity control
  • Power: Universal power supply 100-240 V

Scope of Supply:

  • Immersion oil (5 ml)
  • Power cord
  • Allen hexagonal key
  • Thumb screw
  • Vinyl dust cover

The MOTIC Microscope BA310E Binocular is designed to deliver excellent optical performance with an ergonomic, user-friendly design, making it the perfect choice for educational institutions and laboratories alike.

Downloads

Compare similar models

Microscop BA310E binocular N-WF10X/20mm, binocular tubus, type Siedentopf

Manufacturer P/N

1100100402433

Part Number

6.262 306

Manufacturer

Motic

Tube

Binocular

Microscop BA310E trinocular N-WF10X/20mm, trinocular tubus, type Siedentopf

Manufacturer P/N

1100100402443

Part Number

7.659 854

Manufacturer

Motic

Tube

Trinocular

Frequently asked questions

It is a versatile and high-performance microscope designed for laboratory and educational use. Featuring a binocular tubus with the Siedentopf design, it ensures comfortable and precise viewing with adjustable eyepieces for users of different heights. The N-WF10X/20mm eyepiece provides clear and accurate imaging, while the ergonomic design reduces eye strain during extended use. This microscope is ideal for routine laboratory applications and educational settings where reliable, high-quality optics are required.
