Ohaus Heavy Duty Orbital Shaker SHHD4525DG Digital EU Plug

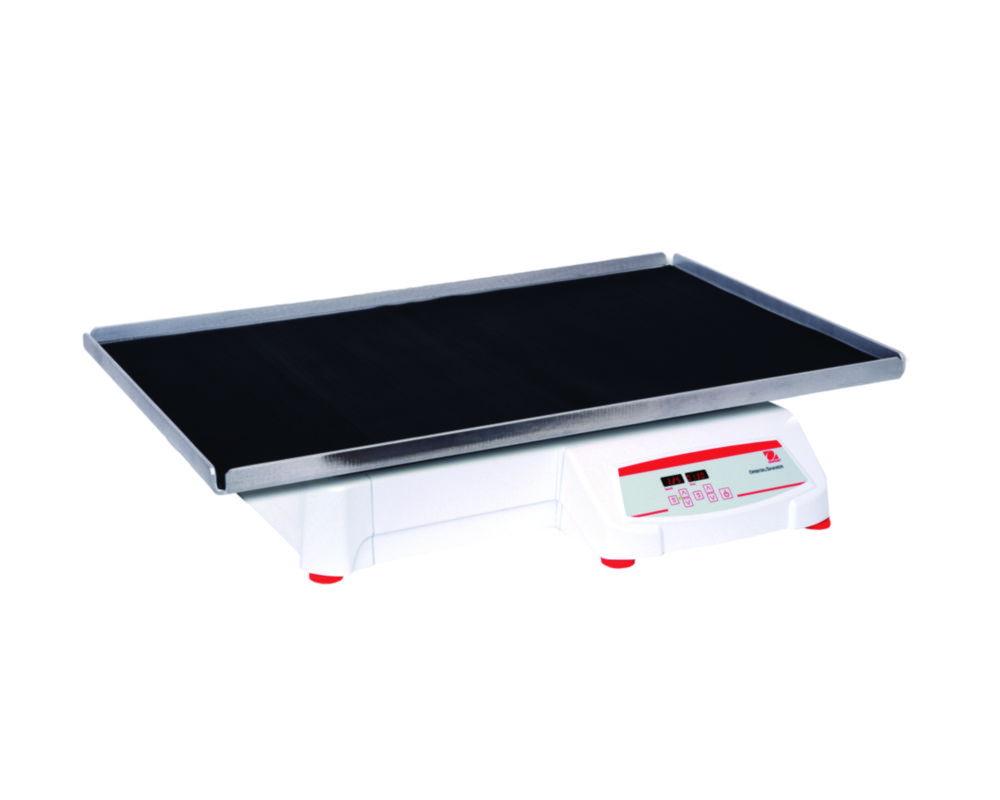

Representative image only

Ohaus Heavy Duty Orbital Shaker SHHD4525DG Digital EU Plug

Sold by: Scientific Resources
Available Soon
Part #: 4.659 463Manufacturer #: 30391865
Estimated shipping time:Contact us via live chat or via contact us page

SG $9,445.20

See the available (5) variant products
Product overview

The Ohaus Heavy Duty Orbital Shaker SHHD4525DG Digital with EU plug is engineered for high-capacity laboratory applications requiring precise and consistent orbital shaking. Featuring a robust design and advanced digital controls, this shaker ensures optimal performance for various sample preparation tasks.

Key Features:

  • Brand: Ohaus
  • Model: SHHD4525DG
  • Control Type: Digital with touchpad control and independent LED displays for speed and time
  • Plug Type: EU plug
  • Speed Range: 15 to 500 rpm
  • Orbit: 25 mm
  • Maximum Load Capacity: 45.4 kg
  • Tray Size: 61 cm x 61 cm
  • Timer: 1 second to 160 hours
  • Drive System: Triple eccentric; brushless DC motor
  • Safety Features: Load sensor, overload protection, audible alarm
  • Communication: RS232 interface for data logging and remote control
  • Construction: Cold rolled steel with aluminum tray
  • Special Features: Patented Accu-Drive Shaking System, speed calibration mode
  • Included Accessories: Built-in tray and non-slip rubber mat

Scope of Supply

  • Shaker including built-in tray and non-slip rubber mat

This shaker is ideal for applications such as cell cultures, solubility studies, extractions, and protein studies.

Product Specifications
  • HS Code #84798200
  • Depth729 mm
  • Depth moving table610 mm
  • Dimensions (WxDxH)678 x 729 x 170 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height170 mm
  • Max. loading capacity45.4 kg
  • Max. permitted ambient temp.60 °C
  • Max. relative humidity rate80 %
  • Max. speed500 1/min
  • Max. voltage230 V
  • Min. permitted ambient temperature-10 °C
  • Min. speed15 1/min
  • Moving table (WxD)610 x 610 mm
  • Permitted ambient temperature-10 ... 60 °C
  • Plug typeEU
  • Power supply230 V, 50/60 Hz
  • Rated capacity80 W
  • Shaking stroke25 mm
  • Speed15 ... 500 1/min
  • TypeSHHD4525DG
  • Type of movementOrbital
  • UNSPSC41103811
  • Weight90.8 kg
  • Width678 mm
  • Width moving table610 mm
  • With timerYes
  • Manufacturer Article Number30391865
