Representative Image

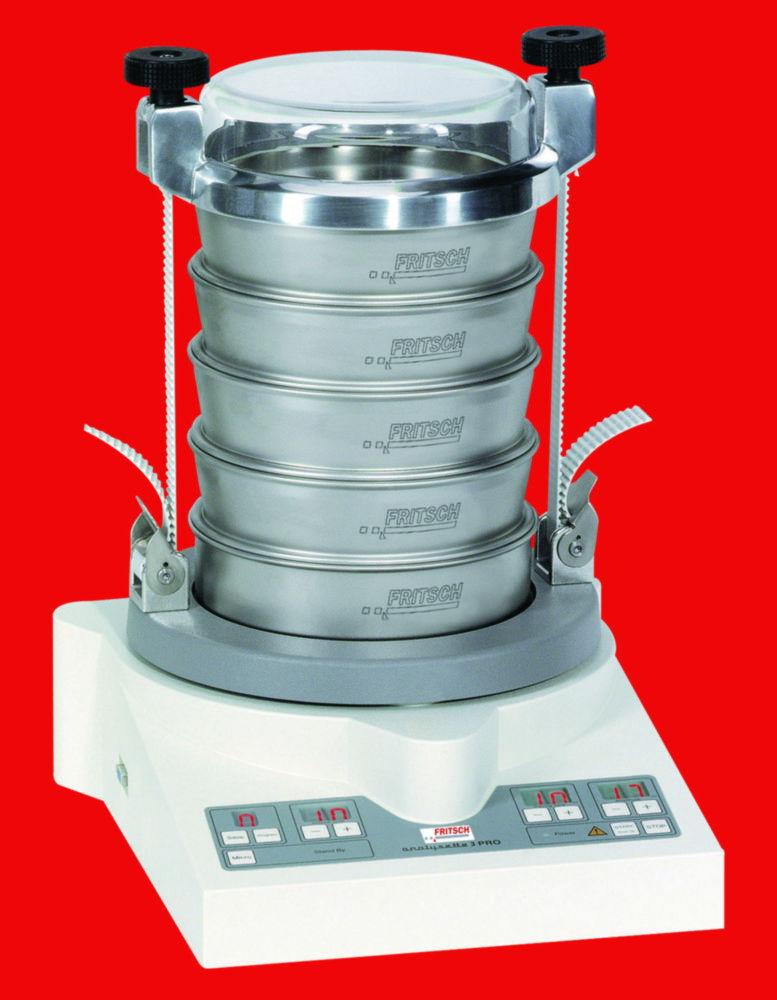

Fritsch Vibratory Sieving Machine "Analysette 3" Pro without Accessories, for Sieve Diameter 200 mm or 8" Max no. of Sieves 10x50 or 20x25 mm High

Brand:Fritsch

Amplitude

Min. amplitude

Type

Specifications

Compare models
HS Code #
84798200
Amplitude
0.1 ... 3 mm
Depth
400 mm
Dimensions (WxDxH)
370 x 400 x 200 mm
Power supply frequency
50/60 Hz
Height
200 mm
Max. amplitude
3 mm
Max. feed quantity
2000 g
Max. measurement
63 mm
Max. sieve stack height
550 mm
Max. sieve stack mass
3 kg

SG $9,126.02

Inc. GST

Available soon

Product description

The Fritsch Vibratory sieving machine "analysette 3" Pro, without accessories, is designed for high-precision sieving of dry, coarse to fine powders. This model is suitable for sieve diameters of up to 200 mm (8 inches) and can accommodate up to 10 sieves of 50 mm high or 20 sieves of 25 mm high. The machine is ideal for material analysis in research, quality control, and laboratories requiring high throughput and precision in particle size distribution testing.

Key Features:

  • Brand: Fritsch
  • Model: Analysette 3 Pro
  • Sieve Diameter: 200 mm (8 inches)
  • Max No. of Sieves: 10x50 mm high or 20x25 mm high
  • Configuration: Supplied without accessories for flexible use
  • Application: Ideal for sieving powders, granulates, and bulk materials in research and industrial laboratories

This sieving machine offers reliable, reproducible results with easy operation, ensuring effective material classification for your laboratory needs.

Accessories

Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for dry sieving

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
acylic glass sieve head for analytical sieves diam. 200 mm/8"
Fritsch Acrylic Glass Sieve Head for Analytical Sieves (Diameter 200 mm/8")
Clamping lid, Plexiglas for 8" / 200mm diam. sieves4110500031.2020.009.826 404SG $935.76
Sieve pan,stainless steel,diam. 200 mm,50 mm high
Fritsch Stainless Steel Sieve Pan (Diameter 200 mm, 50 mm High)
Sieve pan, stainless steel 200mm diam., 50mm high4110500031.1000.039.826 444SG $305.74
Sieve pan,stainless steel,diam. 8",2" high
Fritsch Sieve Pan, Stainless Steel, Diam. 8", 2" High
Sieve pan, stainless steel 8" diam., 2" high4110500031.1020.039.826 406SG $305.74
interposed sieve 200 mm dia. pan made of stainless steel, 50 mm height
Fritsch Interposed Sieve, 200 mm Dia. Pan Made of Stainless Steel, 50 mm Height
Interposed sieve pan made of stainless steel 200mm diam., 50mm height4110500031.1300.039.826 939SG $390.98
clamping lid POM plastic (without window) for all test sieves up to 200 mm/8" dia. for dry sieving
Fritsch Clamping Lid POM Plastic (Without Window) for All Test Sieves up to 200 mm/8" Dia. for Dry Sieving
Clamping lid, POM plastic (without window) for all test sieves up to 200mm / 8" diam.4110500031.2050.009.826 405SG $626.31
interposed sieve steel 8" dia. pan made of stainless steel, 2" mm height
Fritsch Interposed Sieve Steel 8" Dia. Pan Made of Stainless Steel, 2 mm Height
Interposed sieve pan made of stainless steel 8" diam., 2" height4110500031.1320.039.826 940SG $390.98
sieve tensioning system TorqueMaster consisting of clamping lid acrylic glass and electrical tool 230 V/1~, 50 Hz
Fritsch Sieve Tensioning System TorqueMaster Consisting of Clamping Lid Acrylic Glass and Electrical Tool 230 V/1~, 50 Hz
Sieve tensioning system TorqueMaster (incl. clamping lid and electrical tool)4110500031.2100.009.826 943SG $5,012.36

Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for wet sieving

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Sieve pan,stainless steel with outlet,diam. 8" 2" high
Fritsch Sieve Pan, Stainless Steel with Outlet, Diam. 8", 2" High
Sieve pan, stainless steel with outlet, 8" diam., 2" high4110500031.1120.039.826 449SG $1,054.36
Intermediate sieve ring with 3 sprays for analytical sieves,diam 200 mm
Fritsch Intermediate Sieve Ring with 3 Sprays for Analytical Sieves, Diam. 200 mm
Interposed sieve ring with 3 nozzles for test sieves 200mm diam.4110500031.0240.009.826 447SG $3,072.27
Sieve pan,stainless steel with outlet,diam. 200 mm 50 mm high
Fritsch Sieve Pan, Stainless Steel with Outlet, Diam. 200 mm, 50 mm High
Sieve pan, stainless steel with outlet 200mm diam., 50 mm high4110500031.1100.039.826 446SG $1,054.36
Sieve head acrylic with 2 rotating blast pipes for test sieves 200 dia.
Fritsch Sieve Head Acrylic, with 2 Rotating Blast Pipes for Test Sieves 200 Dia.
Clamping lid, Plexiglas with 2 rotation nozzles for test sieves 8" / 200mm diam.4110500031.0400.009.826 401SG $2,390.37
Intermediate sieve ring with 3 sprays for analytical sieves,diam 8"
Fritsch Intermediate Sieve Ring with 3 Sprays for Analytical Sieves, Diam. 8"
Interposed sieve ring with 3 nozzles for test sieves 8" diam.4110500031.0250.009.826 450SG $3,072.27

Compare similar models

Vibratory sieving machine "analysette 3",Pro w/o accessories,for sieve diameter 200 mm or 8" max no. of sieves 10x50 or 20x25 mm high
Available soon
Fritsch Vibratory Sieving Machine "Analysette 3" Pro without Accessories, for Sieve Diameter 200 mm or 8" Max no. of Sieves 10x50 or 20x25 mm High

SG $9,126.02

Inc. GST

Manufacturer P/N

03.7020.00

Part Number

9.826 402

Manufacturer

Fritsch

Amplitude

0.1 ... 3 mm

Vibratory sieving machine "analysette 3",Spartan w/o accessories,for sieve diameter 200 mm or 8", max no. of sieves 10x50 mm or 20x25 mm high
Available soon
Fritsch Vibratory Sieving Machine "Analysette 3" Spartan without Accessories, for Sieve Diameter 200 mm or 8", Max no. of Sieves 10x50 mm or 20x25 mm High

SG $6,846.84

Inc. GST

Manufacturer P/N

03.8020.00

Part Number

9.826 403

Manufacturer

Fritsch

Amplitude

0.5 ... 3 mm

Frequently asked questions

It is designed for high-precision sieving of dry, coarse to fine powders. This model is suitable for sieve diameters of up to 200 mm (8 inches) and can accommodate up to 10 sieves of 50 mm high or 20 sieves of 25 mm high. The machine is ideal for material analysis in research, quality control, and laboratories requiring high throughput and precision in particle size distribution testing.
