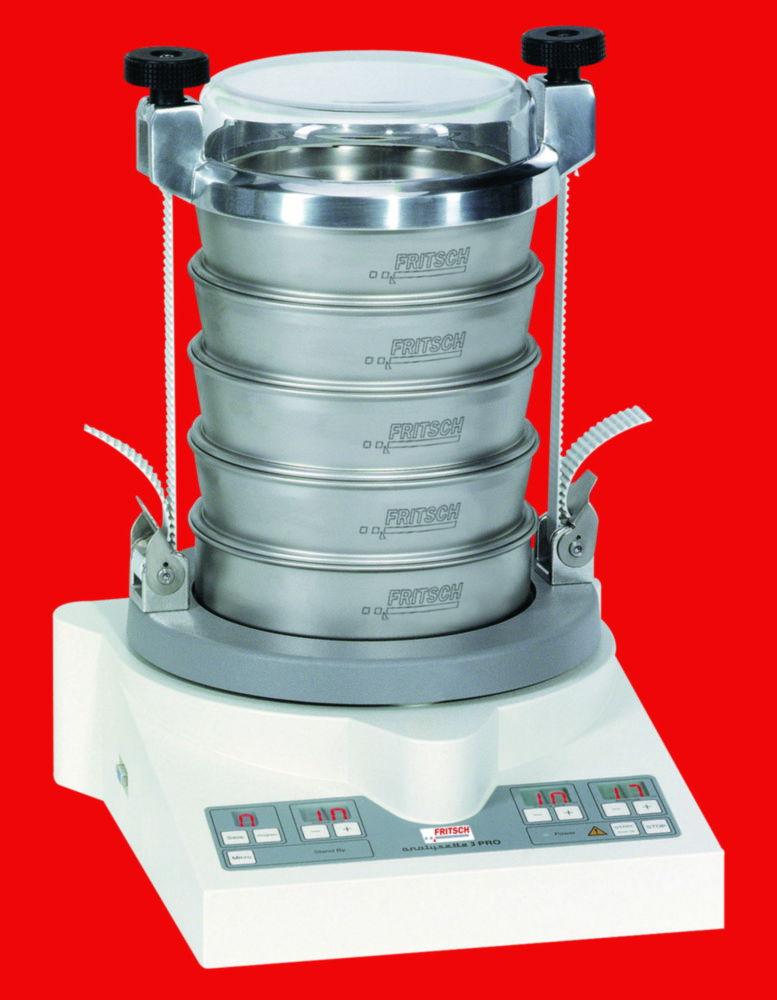

Fritsch Vibratory Sieving Machine "Analysette 3" Spartan without Accessories, for Sieve Diameter 200 mm or 8", Max no. of Sieves 10x50 mm or 20x25 mm High
Representative image only

Fritsch Vibratory Sieving Machine "Analysette 3" Spartan without Accessories, for Sieve Diameter 200 mm or 8", Max no. of Sieves 10x50 mm or 20x25 mm High

Sold by: Scientific Resources
Available Soon
Part #: 9.826 403Manufacturer #: 03.8020.00
Estimated shipping time:Contact us via live chat or via contact us page

SG $6,097.90

See the available (1) variant product
Product overview

The Fritsch Vibratory sieving machine "analysette 3" Spartan, without accessories, is engineered for fast and efficient sieving of fine powders and bulk materials. This model supports sieve diameters up to 200 mm (8 inches) and can hold up to 10 sieves of 50 mm high or 20 sieves of 25 mm high. It is ideal for precise particle size distribution analysis in research and industrial applications, offering reliable results with ease of use.

Key Features:

  • Brand: Fritsch
  • Model: Analysette 3 Spartan
  • Sieve Diameter: 200 mm (8 inches)
  • Max No. of Sieves: 10x50 mm high or 20x25 mm high
  • Configuration: Supplied without accessories for customization
  • Application: Ideal for sieving powders, granules, and materials in laboratories and industries requiring precision analysis

This sieving machine delivers reproducible results and is an essential tool for labs focused on material analysis and quality control.

Product Specifications
  • HS Code #84798200
  • Amplitude0.5 ... 3 mm
  • Depth400 mm
  • Dimensions (WxDxH)370 x 400 x 200 mm
  • Power supply frequency50/60 Hz
  • Height200 mm
  • Max. amplitude3 mm
  • Max. feed quantity2000 g
  • Max. measurement63 mm
  • Max. sieve stack height550 mm
  • Max. sieve stack mass3 kg
  • Max. voltage240 V
  • Measurement range0.02 ... 63 mm
  • Min. amplitude0.5 mm
  • Min. measurement0.02 mm
  • Min. voltage100 V
  • Plug typeEU
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity50 W
  • TypeANALYSETTE 3 SPARTAN
  • Type of sievingDry/wet sieving
  • Usable sieve diameters100/150/200/203 mm
  • Weight21 kg
  • Width370 mm
Downloads
  • Fritsch Sieve Shaker ANALYSETTE 3 BrochureDownload
  • Fritsch Sieve Shaker ANALYSETTE 3 Instruction ManualDownload
