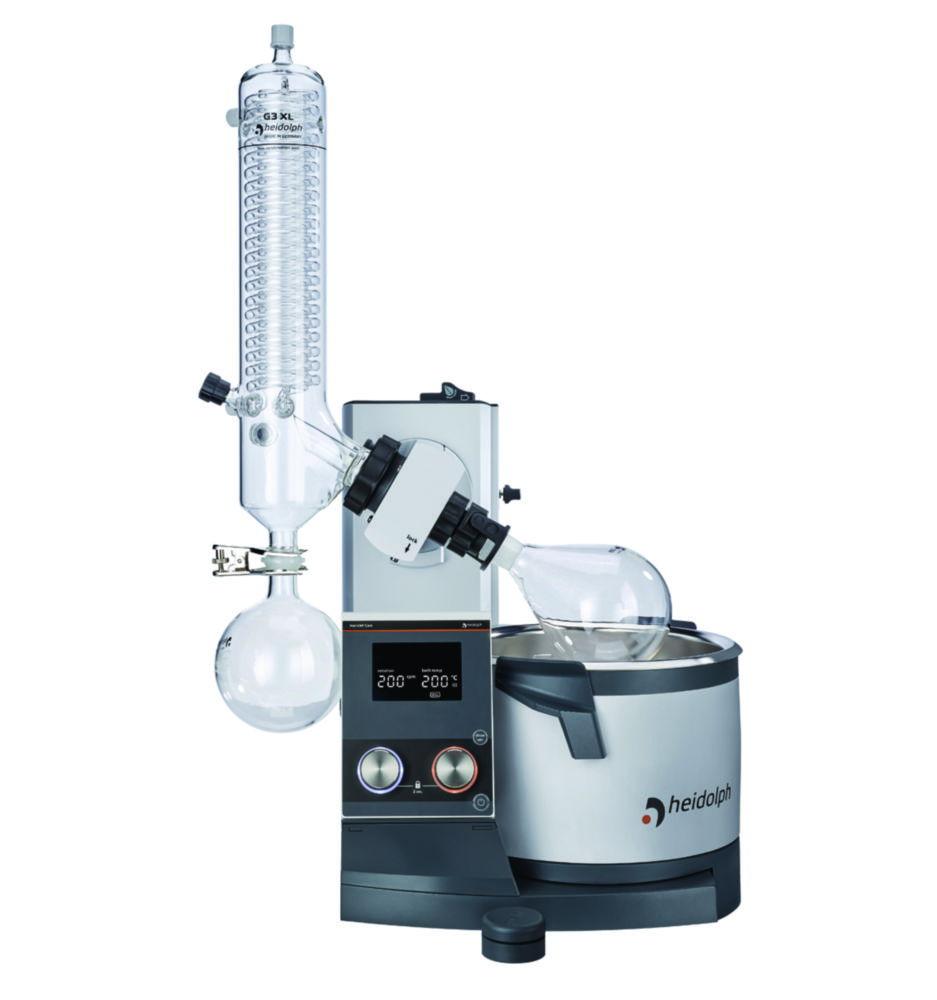

Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL Hand Lift (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL with hand lift is engineered for precise and efficient distillation. It features a G3 XL vertical glassware setup, ideal for handling large sample volumes, and a manual hand lift for reliable control in lab environments. With robust construction and intuitive operation, this evaporator is built to support demanding laboratory workflows.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G3 XL with hand lift (EU plug)
• Lift Mechanism: Manual hand lift for controlled height adjustment
• Glassware Configuration: G3 XL vertical condenser for high-volume distillation
• Display: Clear digital display for current values with a separate button to view set values
• Controls: Two independent knobs for adjusting rotation speed and heating temperature, with LED ring light activity indicators
• Safety: Activated lock feature to prevent unintentional parameter changes; residual heat indicator if temperature exceeds 50 °C
• Design: Ergonomically shaped handles on the heating bath ensure a secure grip
• Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable between 20° and 80°
• Sealing: Grease-free operation using advanced sealing technology for maintenance-free use
• Ventilation: PTFE-inlet ventilation cap without ground joints; optionally available with replenishment valve
• Optional Features: Cable extension and detachable control panel for use outside fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

The Heidolph Hei-VAP Core HL G3 XL rotary evaporator is ideal for laboratories conducting high-volume solvent distillation and evaporation, offering intuitive manual control, reliable safety features, and robust performance for routine and intensive applications.
