Representative Image

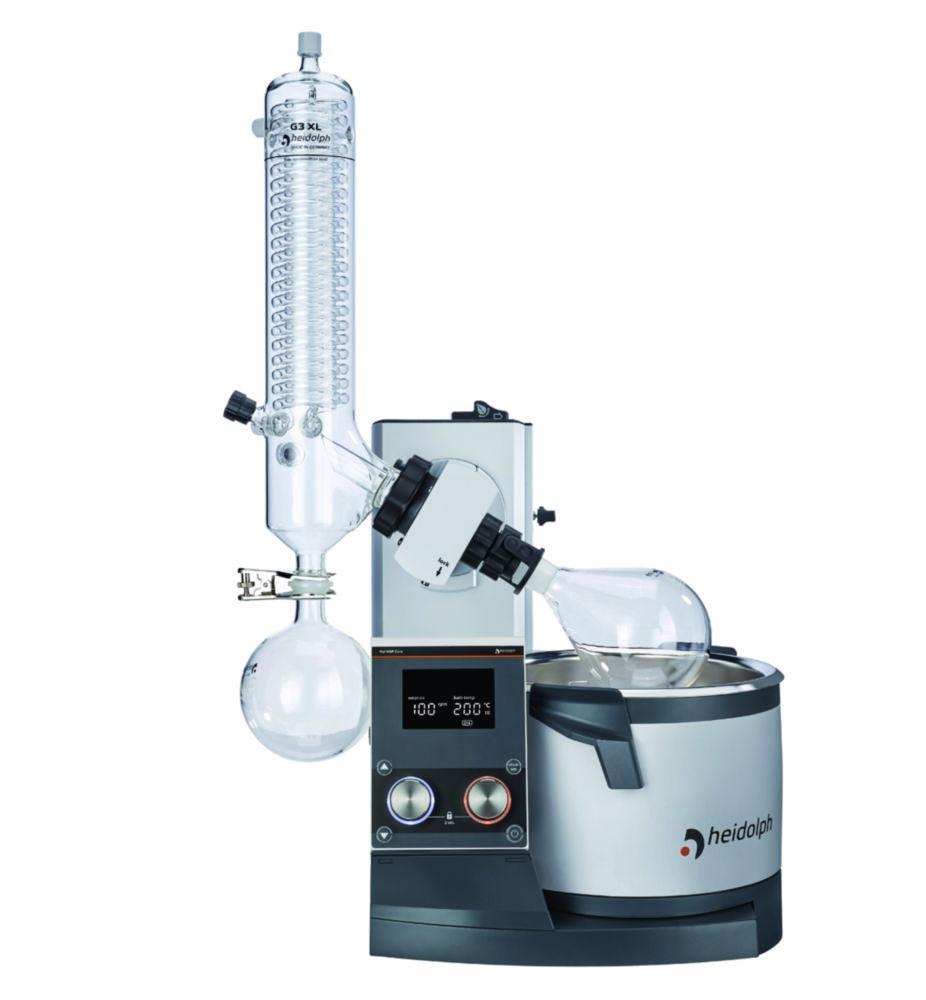

Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL, Motor Lift (EU-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
2200 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
EU

SG $10,436.10

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL with motor lift is engineered for efficient and safe solvent evaporation in laboratories. This advanced system features an extended XL glassware configuration and a motorized lift, offering improved handling of larger volumes and high reproducibility for routine operations.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3 XL
  • Lift Type: Motorized for precision and convenience
  • Glassware: XL setup for high-volume applications
  • Plug Type: EU plug, compatible with European standards
  • Display: Clear digital display for monitoring current and set values
  • Controls: Separate knobs for rotation speed and heating temperature with LED ring light indicators
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Stops all functions and lifts evaporator flask out of the heating bath
  • Design: Ergonomically optimized heating bath handles; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension and detachable control panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

With Heidolph’s durable design and ergonomic features, this rotary evaporator ensures safe and continuous operation while handling demanding evaporation tasks.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675SG $3,059.30
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224SG $522.55
2000 ml41104800514-75000-007.047 223SG $316.86
250 ml41104800514-72000-007.047 221SG $227.92
500 ml41104800514-73000-007.047 222SG $248.30
5000 ml41104800514-78000-007.626 949SG $857.94
100 ml41104800514-71000-007.047 220SG $226.07
50 ml41104800514-70000-006.206 660SG $333.54
1000 ml41104800514-74000-007.047 172SG $296.48

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

SG $10,436.10

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
