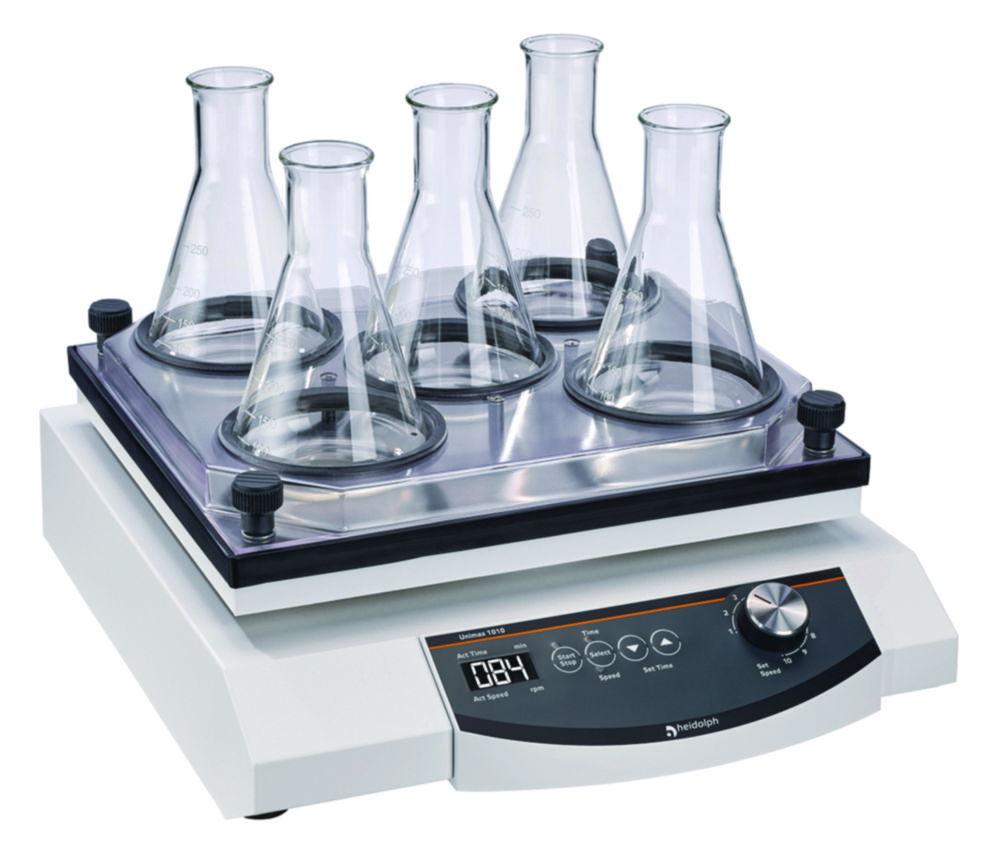

Heidolph Shaker UNIMAX 1010, Rotary Motion, 30–500 1/min, 290x258 mm Area, with Rubber Mat, Without Accessories

Brand:Heidolph

Plug type

Specifications

Compare models
HS Code #
84798200
Depth
125 mm
Depth moving table
258 mm
Dimensions (WxDxH)
320 x 125 x 375 mm
Display
Digital
Height
375 mm
IP code
IP 40
Max. loading capacity
5 kg
Max. permitted ambient temp.
31 °C
Max. relative humidity rate
80 %
Max. speed
500 1/min

SG $4,224.84

Inc. GST

Available soon

Product description

Heidolph Unimax 1010 Shaker offers reliable rotary motion and a large 290 × 258 mm useful area for secure placement of laboratory vessels. Equipped with a rubber mat, this shaker ensures stable operation and gentle to vigorous mixing for a wide range of laboratory applications. With adjustable shaking frequencies from 30 to 500 1/min, it is ideal for mixing, staining, or solubility testing in flasks, dishes, and tubes.

Key Features:

  • Brand: Heidolph
  • Model: Unimax 1010
  • Shaking Type: Rotary motion for consistent and gentle agitation
  • Frequency Range: Adjustable 30 – 500 1/min for flexible operation
  • Useful Area: 290 × 258 mm with included rubber mat
  • Application: Suitable for mixing samples in flasks, dishes, or tubes
  • Design: Compact, stable platform for continuous or timed operation

Note: Attachments are not included – please order separately.

The Heidolph Unimax 1010 Shaker provides precision, durability, and dependable performance, making it an ideal choice for laboratories that require controlled and reproducible sample mixing.

Accessories

Accessories for shakers and mixers

ProductDescriptionForMfr#Part#AvailabilityPrice
Holder rack 10
Heidolph Holder Rack 10
Attachment for 10 test tubes 10 or 60mm ?Reax Top, Reax Control549-01000-009.730 045SG $164.92
Adapter for 20 test tubes 10-18 mm diam.
Heidolph Adapter for 20 Test Tubes (10–18 mm Diameter)
Adapter for 20 test tubes dia. 10 to 18mmReax 2549-21000-009.730 222SG $869.06
Frame for clamping rollers
Heidolph Scientific Frame for Clamping Rollers
Frame for tension roller only. Supplied without tension rollerUnimax 2010, Promax 2020, Polymax 2040549-50000-009.839 811SG $457.69
Temsion roller
Heidolph Scientific Tension Roller
Tension roller and frame complete. Order at least 2Unimax 2010, Promax 2020, Polymax 2040549-58000-009.839 812SG $194.56
Tray 2000 with universal pattern of holes
Heidolph Tray 2000, with Universal Pattern of Holes
Universal perforated platform 2000Unimax 2010, Promax 2020, Polymax 2040549-59000-009.839 813SG $466.96
Attachment complete with 2 clamping rollers
Heidolph Scientific Attachment Complete, with 2 Clamping Rollers
Attachment with 2 tension rollersVibramax 100, Rotamax 120549-81000-009.839 844SG $320.57
holder for test containers for max. 6 Eppendorf Cups (1.5ml)
Heidolph Holder for Test Containers for Max. 6 Eppendorf Cups (1.5 ml)
Test tube stand for up to 6 Eppendorf vessels (1.5ml)Reax Top, Reax Control549-04000-006.229 903SG $157.50
Holding staff with vessel holder V2A
Heidolph Holding Staff, with Vessel Holder V2A
V2A support rod with vessel holderReax Top, Reax Control549-20000-009.730 021SG $285.36
Attachment for seperating funnels for flask size 50 ml or 100 ml
Heidolph Attachment for Separating Funnels for Flask, Size, 50 ml or 100 ml
Attachment for up to 4 conical separating funnels, 50ml or 100mlUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-78000-009.839 871SG $791.23
Set of holder for four bottles 500 ml
Heidolph, Set of Holder for Four Bottles, 500 ml
Set of holders for four 0.5I bottlesReax 20/4, Reax 20/8, Reax 20/12549-27000-009.839 809SG $244.60
Tray 1000 with universal pattern of holes
Heidolph Tray 1000, with Universal Pattern of Holes
Universal perforated platform 1000Unimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-59200-009.839 814SG $366.89
Clamping roller extra
Heidolph Clamping Roller Extra
Spare tension rollerVibramax 100, Rotamax 12011-008-007-087.078 546SG $161.21
Clamping plate large, complete
Heidolph Clamping Plate Large, Complete
Tension plate for caps allows for the use of common bottles with dia. 94mmReax 20/4, Reax 20/8, Reax 20/1211-001-001-817.055 418SG $46.32
Attachment with clamping rollers for all vessels complete with 2 clamping rollers
Heidolph Attachment with Clamping Rollers for All Vessels (Complete with 2 Clamping Rollers)
Attachment with 2 tension rollersUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-70000-009.839 869SG $670.79
Set of clips seperating funnels,cap. 2000 ml
Heidolph Set of Clips for Separating Funnels, Cap. 2000 ml
Size 2 separatory funnel clamp for platform 2000 (2000 ml - max. 2 per platform)Unimax 2010, Promax 2020, Polymax 2040549-61000-009.839 827SG $550.34
Set of clips seperating funnels,cap. 250 - 1000 ml
Heidolph Set of Clips Separating Funnels, Cap. 250 - 1000 ml
Size 1 separatory funnel clamp for platform 2000 (250 ml - max. 4, 500/1000ml - max. 3 per platform)Unimax 2010, Promax 2020, Polymax 2040549-57000-009.839 823SG $439.16
Universal adapter
Heidolph Universal Adapter
Universal adapter (for flasks, bottles, test tube racks, etc.)Reax 2549-30000-009.730 223SG $1,206.30
Spare tension roller
Heidolph Spare Tension Roller
Spare tension rollerUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-71000-009.839 870SG $231.62
Set of holder for four bottles 1 ltr.
Heidolph, Set of Holder for Four Bottles, 1 Ltr
Set of holders for four 1I bottlesReax 20/4, Reax 20/8, Reax 20/12549-26000-009.839 808SG $190.86
Multi-storey attachment incl.platform 2000
Heidolph Multi-Storey Attachment including Platform 2000
Multi-storey attachment. Includes perforated platform 2000 and 4 supporting rodsUnimax 2010, Promax 2020, Polymax 2040549-62000-009.839 826SG $830.14
Tray 100 with universal pattern of holes
Heidolph Tray 100, with Universal Pattern of Holes
Tray 100 with universal boringsVibramax 100, Rotamax 120549-59100-006.229 800SG $261.27

Heating module for Incubator 1000, Suitable for Heidolph Shakers

ProductPlug typeType of auxiliary energyMfr#Part#AvailabilityPrice
INCUBATOR 1000 without shaker and hood temperature up to 65°C
Heidolph Incubator 1000, Modular Heating System up to 65°C, for Duomax, Polymax, Titramax, Unimax, and Promax Shakers
EUMains connection549-90010-009.839 875SG $3,001.86
Incubator 1000 heating module CH-plug
Heidolph Scientific Incubator 1000 Heating Module CH-Plug
CHMains connection549-90010-024.703 300SG $3,001.86
Incubator 1000 heating module UK-plug
Heidolph Scientific Incubator 1000 Heating Module UK-Plug
UKMains connection549-90010-014.703 299SG $3,001.86

Compare similar models

Shaker, with rubber mat,useful area 290x258 mm UNIMAX 1010,rotary motion,frequency 30-500 1/min w/o accessories
Available soon
Heidolph Shaker UNIMAX 1010, Rotary Motion, 30–500 1/min, 290x258 mm Area, with Rubber Mat, Without Accessories

SG $4,224.84

Inc. GST

Manufacturer P/N

543-12310-00

Part Number

9.839 851

Manufacturer

Heidolph

Plug type

EU

Platform shaker Unimax 1010-UK -driving speed 30 bis 500 min -circular agitation with 10 mm Orbit
Available soon
Heidolph Platform Shaker Unimax 1010-UK - Driving Speed 30 to 500 RPM, Circular Agitation with 10 mm Orbit

SG $4,224.84

Inc. GST

Manufacturer P/N

543-12310-06

Part Number

9.839 797

Manufacturer

Heidolph

Plug type

UK

Platform shaker Unimax 1010-CH -driving speed 30 bis 500 min -circular agitation with 10 mm Orbit
Available soon
Heidolph Scientific Platform Shaker Unimax 1010-CH-driving Speed 30 Bis 500 Min-circular Agitation, with 10 mm Orbit

SG $4,224.84

Inc. GST

Manufacturer P/N

543-12310-02

Part Number

9.839 796

Manufacturer

Heidolph

Plug type

CH

More items to explore

Orbital shaker Unimax 1010 package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
Package Unimax -platform shaker Unimax 1010 -heating module Inkubator 1000
Heidolph Package Unimax: Platform Shaker Unimax 1010 + Heating Module Inkubator 1000
EUUnimax 1010543-12319-009.839 839SG $8,755.42
Package Unimax-UK -platform shaker Unimax 1010 -heating module Inkubator 1000, with UK plug
Heidolph Scientific Package Unimax-UK-platform Shaker Unimax 1010 -Heating Module Inkubator 1000, with UK Plug
UKUnimax 1010543-12319-064.667 663SG $8,755.42
Package Unimax-US (115V)
Heidolph Scientific Package Unimax-US (115V)
USUnimax 1010543-12319-046.324 469SG $8,755.42
Unimax Paket CH-plug
Heidolph Scientific Unimax Paket CH-plug
CHUnimax 1010543-12319-024.703 282SG $8,755.42
